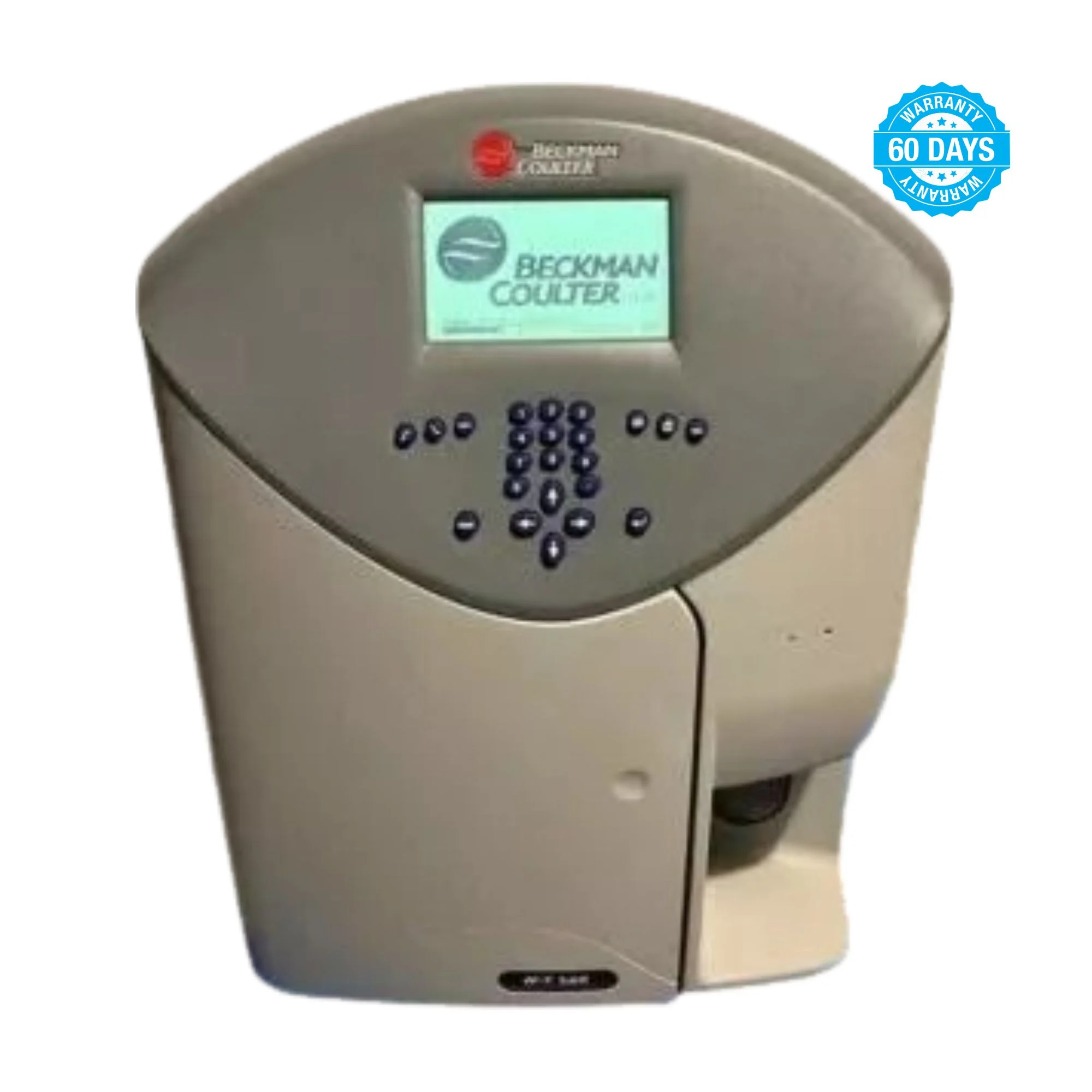

The Beckman Coulter AC·T 5DIFF CP Hematology Analyzer is a compact, high-performance 5-part differential blood cell counter designed for clinical laboratories, diagnostic centers, and research environments. Known for its accuracy and reliability, this analyzer delivers complete blood count (CBC) results with advanced 5-part white blood cell differentiation, making it ideal for mid-throughput lab settings.
This unit has been tested for mechanical and computer operation. The internal self-test initializes successfully, and all five functional modules pass startup diagnostics. While reagents were not available for full sample testing, all mechanical and electronic components are in working condition.
Built with an intuitive user interface and a compact benchtop footprint, the AC·T 5DIFF CP offers fast, efficient blood analysis with minimal sample volume. The analyzer is compatible with standard LIS systems and includes a monitor, keyboard, and mouse.
Specifications:
– Brand: Beckman Coulter
– Model: AC·T 5DIFF CP
– Analyzer Type: Hematology Analyzer
– Analysis Method: Impedance-based counting with volume measurement and laser-based differentiation
– Parameters: Up to 26 reportable parameters including WBC, RBC, HGB, HCT, PLT, MCV, MCH, MCHC, and 5-part WBC differential
– Throughput: Up to 60 samples per hour
– Sample Volume Required: Approx. 110 μL whole blood
– Display: Integrated monitor with intuitive user interface (includes keyboard and mouse)
– Operating System: Embedded software (Windows-based interface on attached PC)
– Data Management: Onboard storage and optional LIS connectivity (Lab Information System integration)
– Barcode Reader: Optional external or integrated depending on configuration
– Interfaces: Serial, parallel, and USB ports (model-dependent)
– Print Capability: Compatible with external printers (not included)
– Power Requirements: 100–240 V AC, 50/60 Hz
Includes:
– Beckman Coulter AC.T 5DIFF CP Hematology Analyzer
– Power Cord
