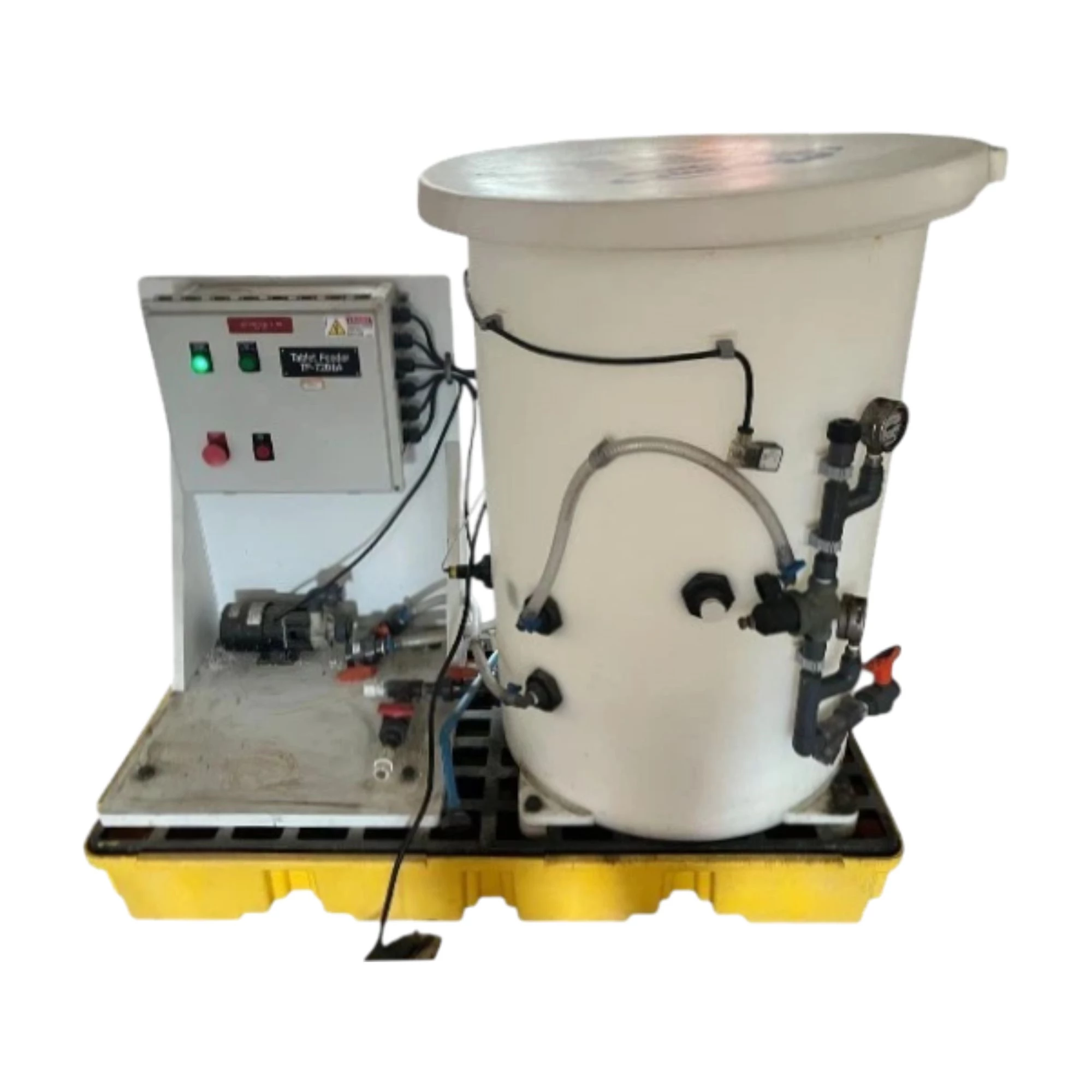

The Constant Chlor Plus MC4-150 Water Chlorination System offers efficient and safe calcium hypochlorite feed for water disinfection. Designed for municipal, industrial, and pool applications, it provides precise control, corrosion-resistant materials, and easy maintenance. Ideal for continuous chlorination where reliability is critical. Professionally inspected and tested for dependable operation.
Specifications:
– Manufacturer: Constant Chlor plus
– Model: MC4-150
– Serial No: MC4 – 150L – 14H – 0017
– Chlorine Delivery Rate 20.0 – 150.0 lb. (0 – 68 kg) AvCl /day with 70° F (21° C) inlet water temp.
– Pressure Range 35 – 45 psig (240 – 310 kPa)
– Water Inlet Size ½ inch, FNPT
– Solution Outlet (injector) Size ½ inch, MNPT
– Dry Chemical Capacity 225 lbs. (102 kg)
– Site Requirements – Inlet Water: 6.0 gpm @ 45 – 150 psig (22.7 lpm @ 340 – 1040 kPa) without dilution. 15.0 gpm @ 50 – 150 psig (56.8 lpm @ 340 – 1040 kPa) with max dilution
– Electrical 120V / 1ph / 60Hz (20 amp)
Includes:
– Briquette Tank (Hopper)
– Control Panel
– Spray Manifold
– Dosing Pump
– Valves and Plumbing
– Skid and Enclosure
– Power cord
