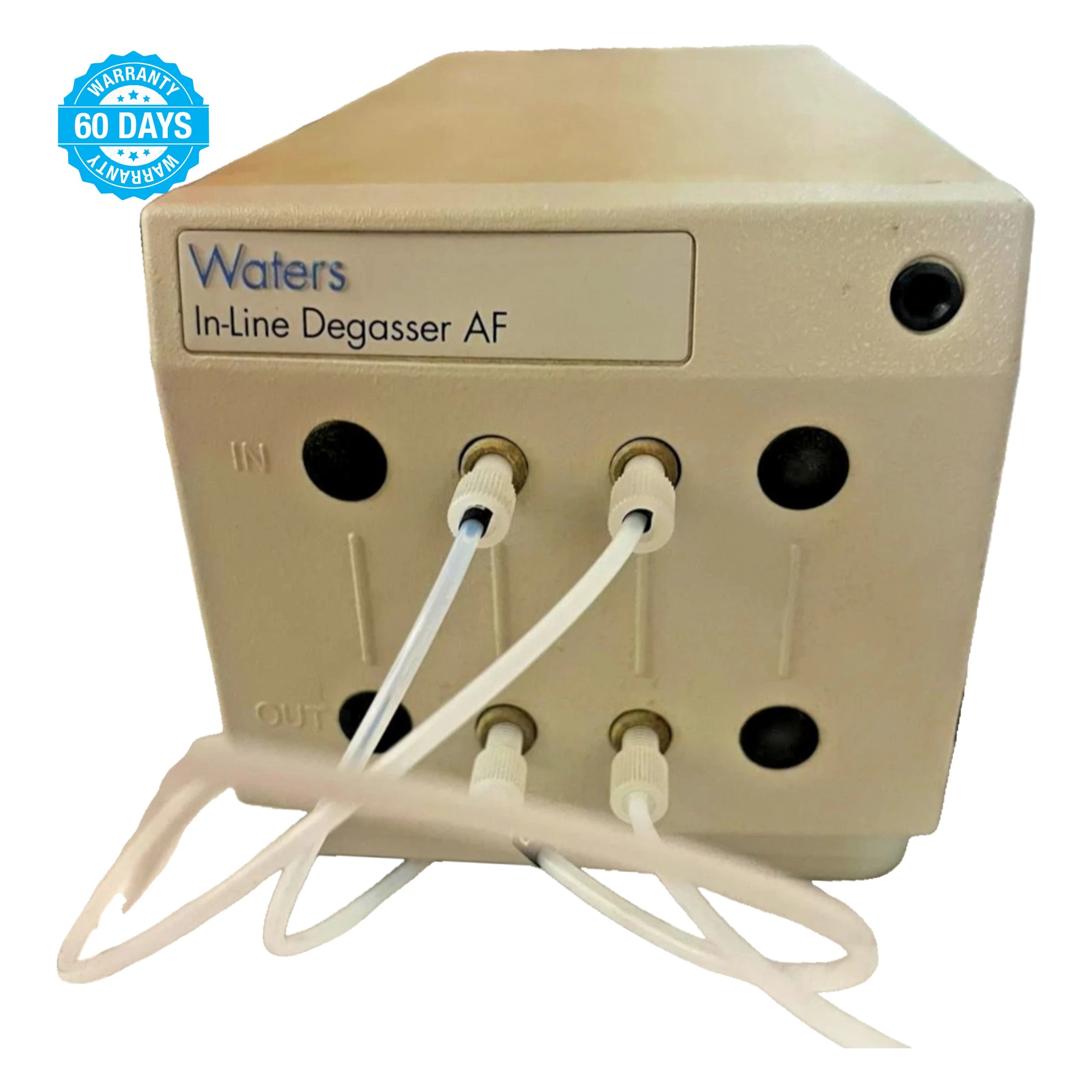

Waters AF DG2 Inline Degasser 186001273

The Waters In-Line Degasser AF (P/N 186001273) is a high-performance 2-channel vacuum degasser designed for precision HPLC and liquid chromatography systems. Utilizing a Teflon® AF tubular membrane, this unit efficiently removes dissolved gases from mobile phases, improving system stability and analytical accuracy. Its built-in 2-head diaphragm pump operates in a zero-hysteresis, constant-run mode, minimizing baseline drift and ensuring consistent vacuum performance.

Ideal for demanding analytical labs, the degasser features broad chemical compatibility (pH 0–14), minimal internal volume (<0.5 mL per channel), and optimized flow ranges from 200 µL/min to 5 mL/min. Engineered with durable wetted materials (PPS, Teflon AF, Tefzel), this compact solution integrates seamlessly into existing systems. Includes external enable/disable control and DC output for real-time vacuum monitoring.

Specifications:
– Manufacturer: Waters
– Model: In-Line Degasser AF
– Part Number (P/N): 186001273
– Channels: 2-channel configuration (standard for this part number; some variants may support 3 or 4 channels)
– Degassing Method: In-line vacuum degassing using tubular Teflon® AF membrane
– Vacuum Source: Built-in 2-head diaphragm pump, resistant to solvents
– Pump Operation: Continuous cycling between high-speed (for rapid vacuum pull-down) and low-speed (to maintain steady vacuum); “zero hysteresis / constant-run” mode reduces baseline drift
– pH Range: 0 to 14
– Gas Removal Efficiency: Depends on flow rate
– Typical Operating Flow Range: 200 µL/min to 5 mL/min (per channel)
– Equilibration Time: Less than 1 hour
– Pressure Drop (per channel): < 0.08 psi (0.55 kPa) at 1 mL/min using Milli-Q® water at STP
– Wetted Surfaces: PPS, Teflon® AF, Tefzel® – chemically resistant to acids, bases, salts, surfactants, and organic solvents
– Internal Volume (per channel): < 0.5 mL
– Eluent Connections: 1/4-28 reversed ferrule fittings; 4 inlets and 4 outlets (for 2 channels)
– Vapor Exhaust: 1/8-inch (3 mm) barbed fitting
– Vacuum Sensor: Measures vacuum from 0 to 15.6 psiA
– Max Inlet/Outlet Pressure: 10 psi (70 kPa)
– Inputs: Enable / Disable for external control
– Outputs: DC voltage signal (reflects relative vacuum level)

Includes:
– Waters AF DG2 Inline Degasser 186001273
– Power Cord
