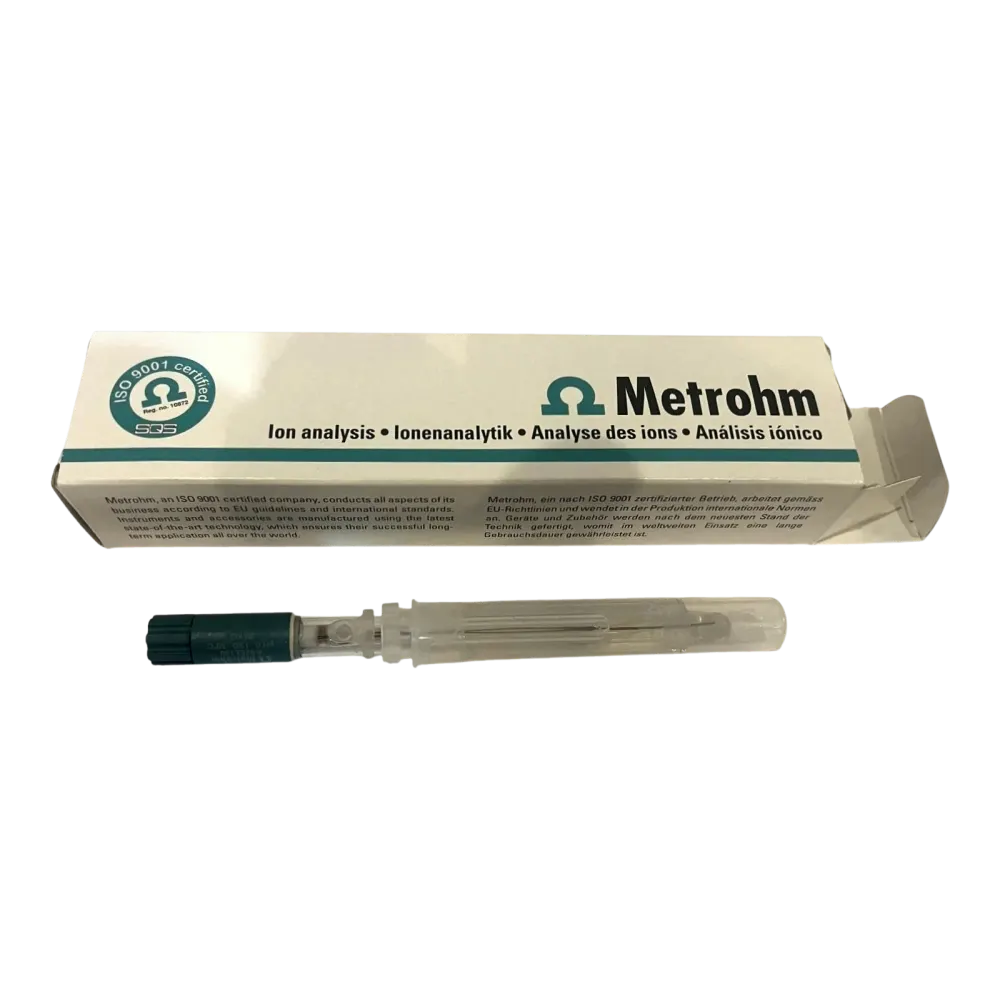

Metrohm LL Electrode Plus 6.0262.100 pH Electrode
The Metrohm LL Electrode Plus 6.0262.100 pH Electrode is a combined pH electrode for aqueous acid/base titration. Metrohm’s current product documentation identifies part number 6.0262.100 as the Ecotrode plus and describes a fixed ground-joint diaphragm designed to resist contamination. The electrode uses a reference electrolyte of c(KCl) = 3 mol/L and is intended for pH measurement in aqueous titration workflows.
A combined pH electrode integrates the measuring and reference functions into a single probe, simplifying connection to compatible Metrohm measurement systems. The fixed ground-joint diaphragm is particularly relevant to routine titration because the reference junction is designed for stable operation in aqueous acid/base applications. The electrode’s LL reference system and Metrohm plug-in head support integration with compatible Metrohm instrumentation.
Key Features
- Manufacturer: Metrohm.
- Part number: 6.0262.100.
- Ecotrode plus combined pH electrode.
- For aqueous acid/base titration.
- Fixed ground-joint diaphragm resistant to contamination.
- Glass shaft and Metrohm plug-in head G.
- LL reference system with KCl reference electrolyte.
Technical Specifications
- Measuring Unit: pH.
- pH Range: 0?13.
- Long-Term Temperature Range: 0?80 ?C.
- Short-Term Temperature Range: 0?80 ?C.
- Shaft Material: Glass.
- Shaft Diameter: 12 mm at the top and bottom.
- Maximum Installation Length: 125 mm.
- Minimum Immersion Depth: 20 mm.
- Electrode Plug-In Head: Metrohm plug-in head G.
- Diaphragm: Fixed ground-joint diaphragm.
- Reference Electrolyte: c(KCl) = 3 mol/L.
- Electrode Slope: Greater than 0.97.
- Electrode Zero Point: ?15 mV.
Applications
The 6.0262.100 is suited to aqueous acid/base titration, pH measurement, laboratory quality control, and analytical workflows where a combined glass pH electrode is required. It is particularly relevant to Metrohm titration systems using compatible electrode connections.
Electrode performance depends on proper storage, conditioning, sample compatibility, and instrument setup. The manufacturer specifications describe the electrode design and do not establish the response or condition of the particular used electrode.
Additional Benefits
- Local pickup available in Houston, Texas.
- Free shipping on select products within the USA.
- International shipping via FedEx available upon request.
Contact us today to request a customized quote and help ensure your laboratory or industrial workflow operates efficiently using Metrohm 6.0262.100 Ecotrode Plus pH Electrode.
