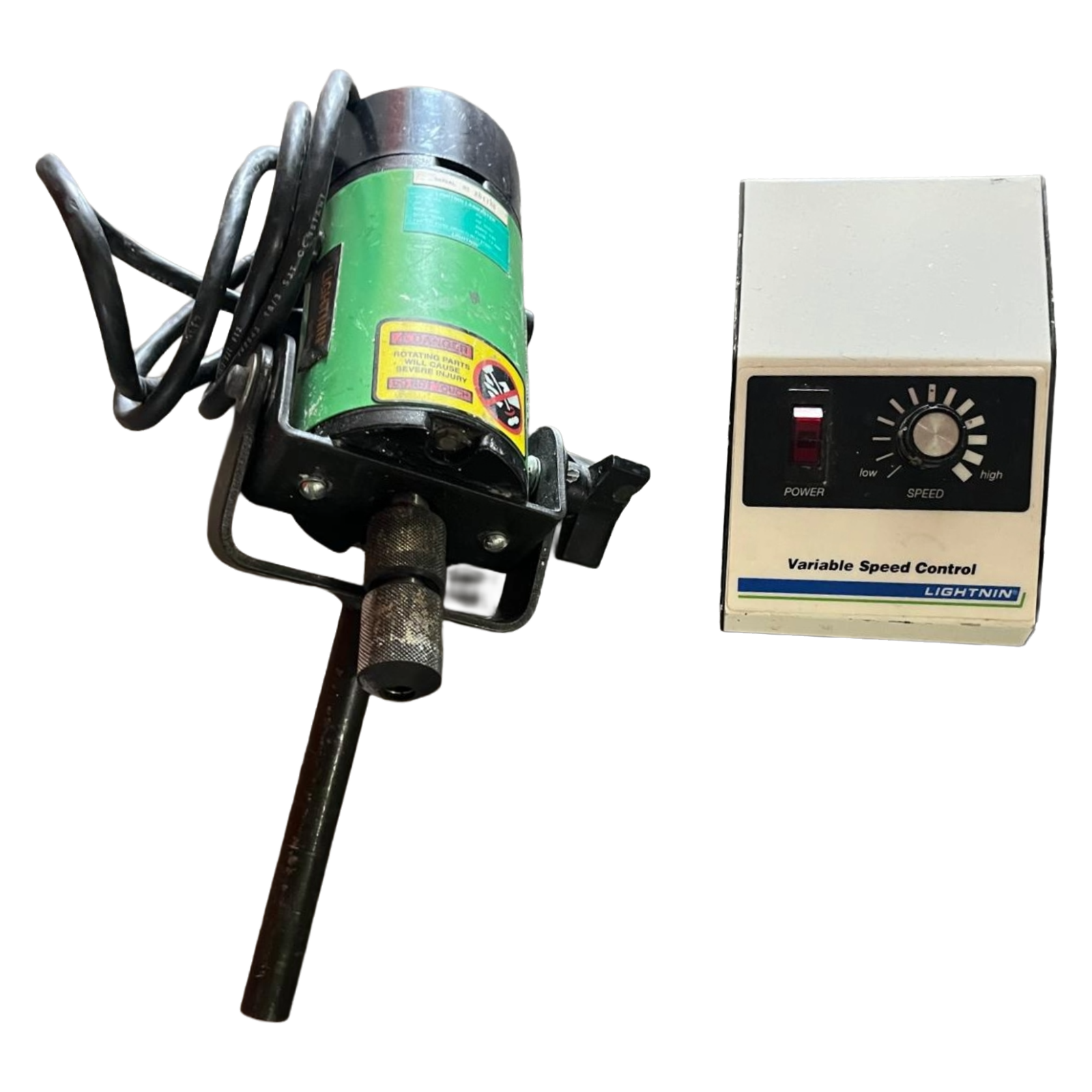

Mixing and agitation workflows involving liquids, suspensions, and laboratory-scale formulations can benefit from the Lightnin Labmaster G2Y05R Variable Speed Overhead Stirrer. The G2 series belongs to Lightnin’s general-purpose laboratory mixer family and uses a mechanical overhead mixing configuration for controlled agitation.
Available technical documentation identifies the G2Y05R configuration with a 115 VAC, single-phase motor, 0?1800 RPM operating range, and 316 stainless-steel shaft. The Lightnin Labmaster platform is used in laboratory and pilot-scale mixing environments where an overhead stirrer provides mechanical agitation without relying on magnetic coupling.
Key Features
- Lightnin Labmaster general-purpose laboratory mixer
- G2Y05R model configuration
- Variable-speed overhead mixing
- 0?1800 RPM range documented for the G2Y05R configuration
- 115 VAC, single-phase power
- 316 stainless-steel shaft
- Direct-drive laboratory mixing design
- Compatible with Lightnin impeller configurations
Technical Specifications
- Manufacturer: Lightnin

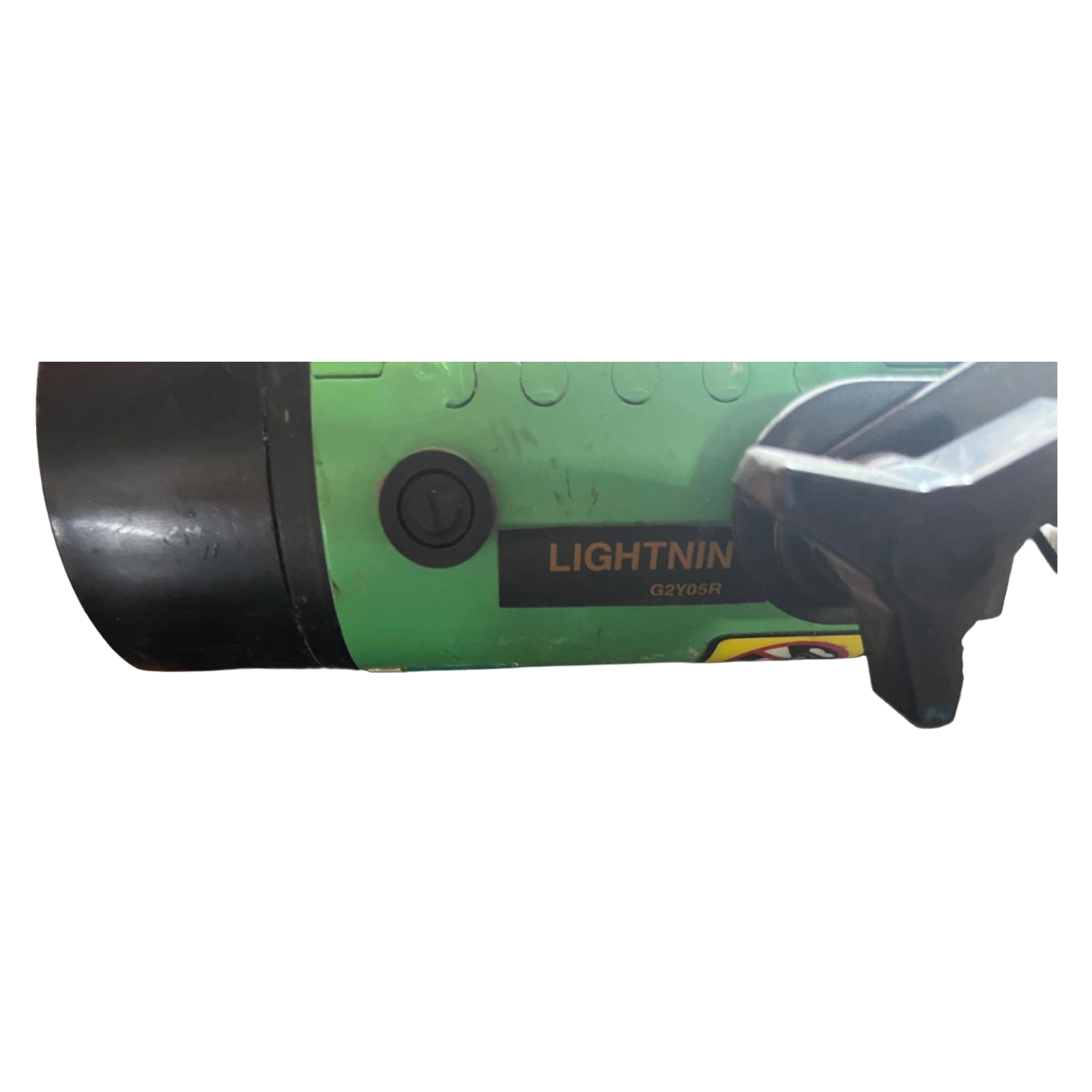

- Model: G2Y05R
- Product type: Variable-speed overhead stirrer / laboratory mixer

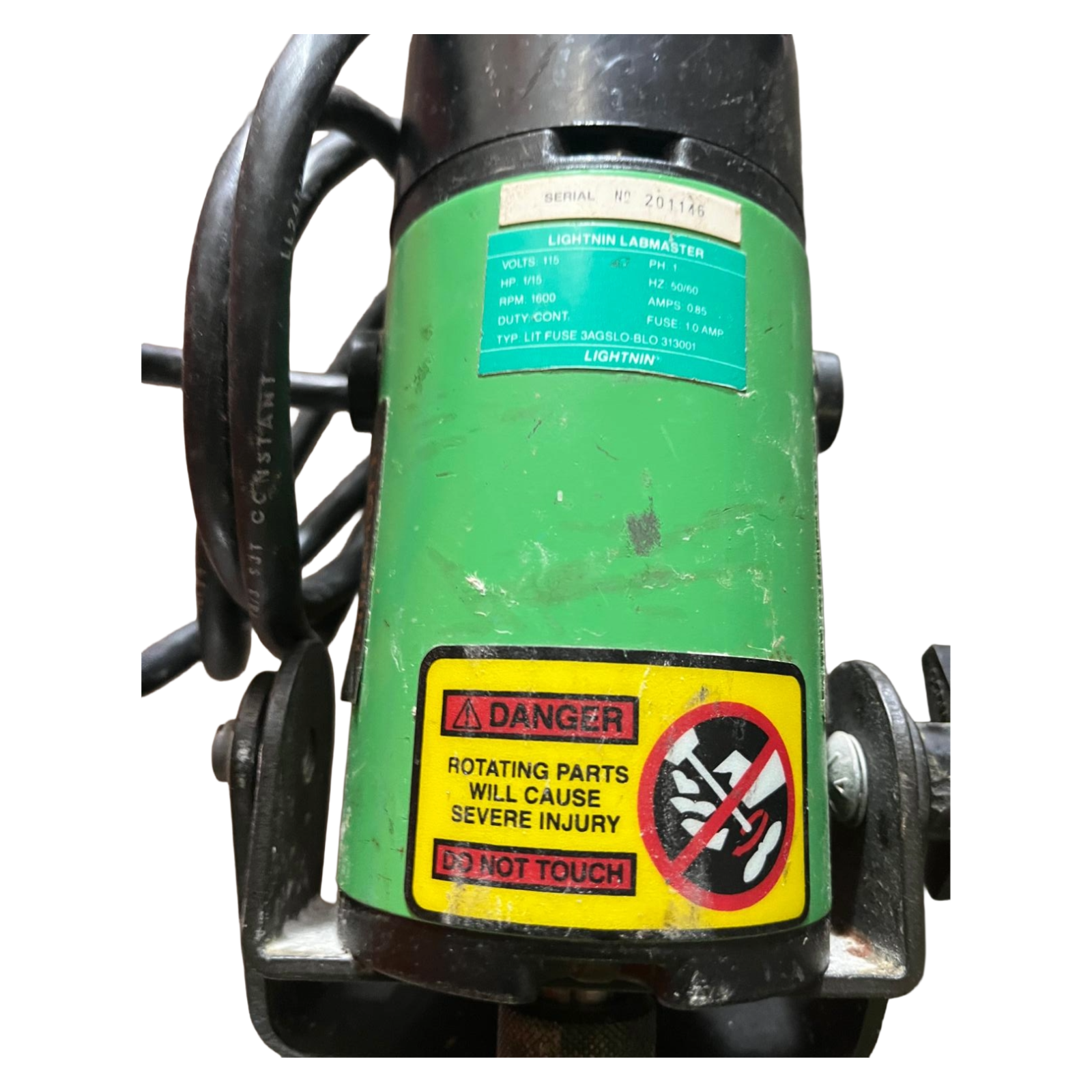

- Motor: 1/10 HP configuration documented for G2Y05R

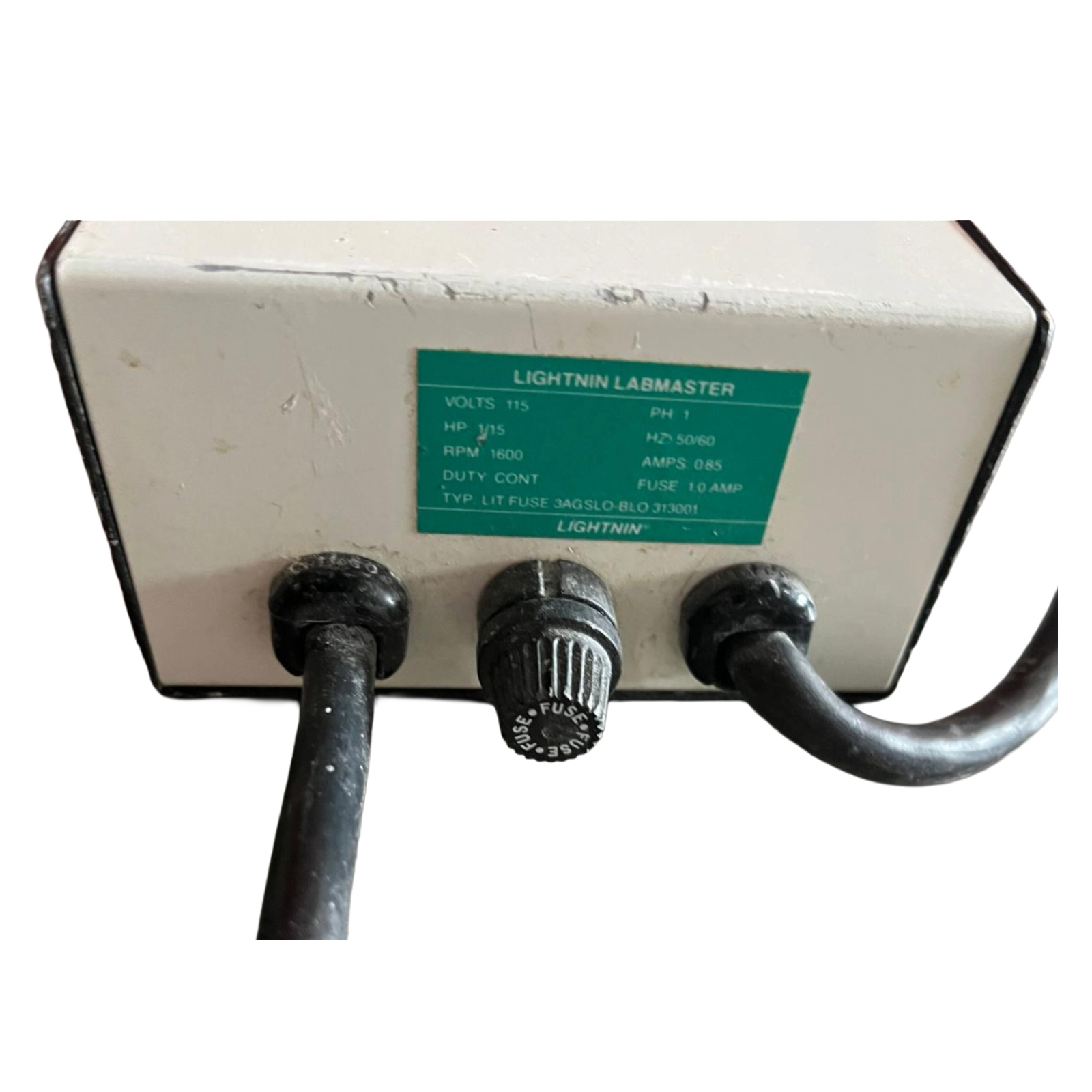

- Power: 115 VAC, 60 Hz, single phase
- Speed range: 0?1800 RPM
- Shaft: 3/8 in. x 24 in., 316 stainless steel
- Impeller configuration: A310 identified in Lightnin documentation

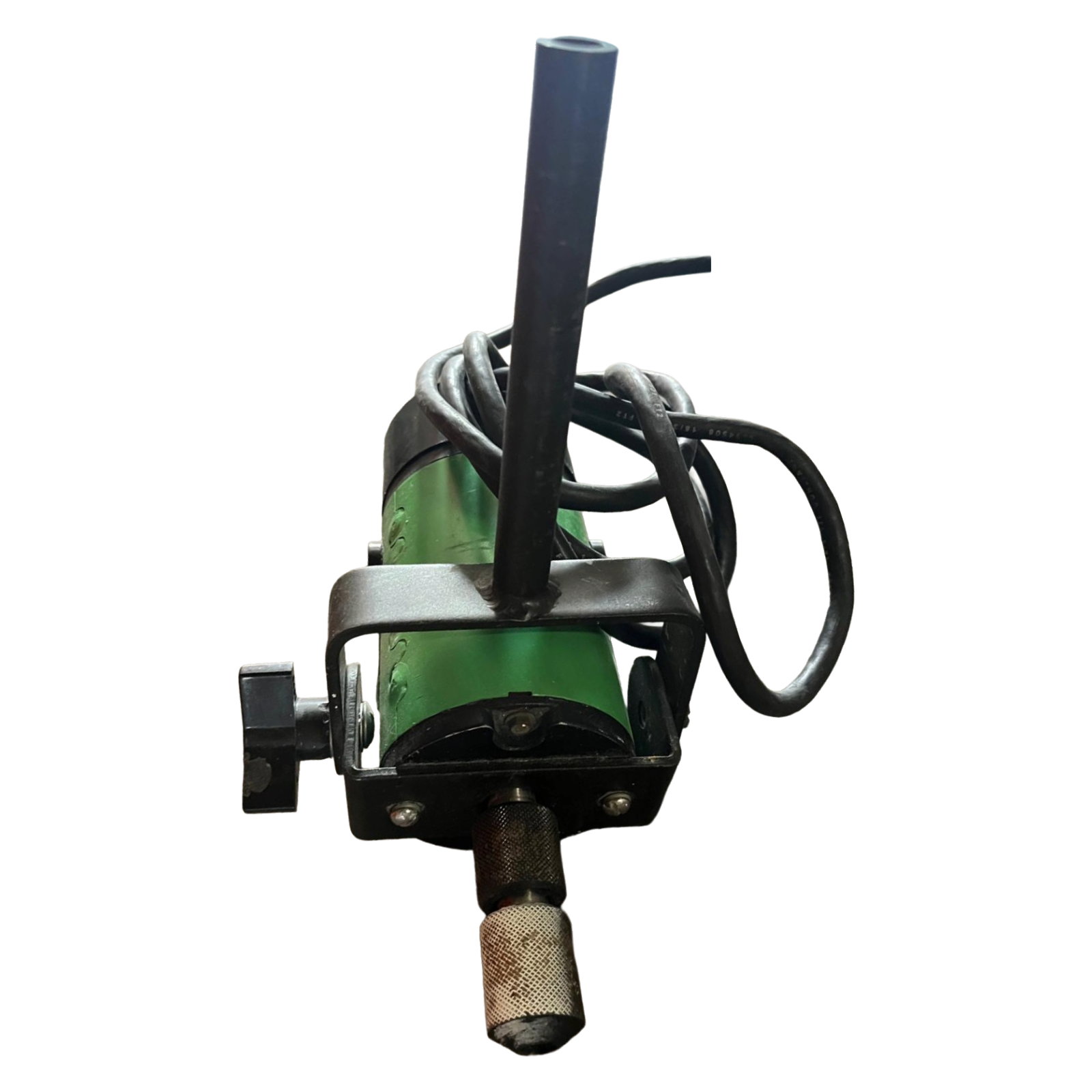

- Mounting: Rod-mount configuration documented for the G2Y05R
Common Applications
- Laboratory liquid mixing
- Suspension preparation
- Formulation development
- Materials research
- Chemical processing research
- Pilot-scale mixing
- Viscosity and rheology sample preparation
The mechanical overhead configuration makes this Lightnin mixer relevant for laboratories that need more controlled agitation than a simple magnetic stirrer can provide. LabMaster equipment has been used in research involving emulsions, suspensions, ceramics, chemicals, and other materials where controlled mechanical mixing is required.
Its variable-speed operation allows users to select a mixing rate appropriate to the process, while the overhead format accommodates vessels where an external shaft and impeller are preferred.
Includes
- Lightnin Labmaster G2Y05R Variable Speed Overhead Stirrer
Additional Benefits
- Local pickup available in Houston, Texas.
- Free shipping on select products within the USA.
- International shipping via FedEx available upon request.
Contact us today to request a customized quote and help ensure your laboratory or industrial workflow operates efficiently using the Lightnin Labmaster G2Y05R Variable Speed Overhead Stirrer.
