Micron ImperviTRAN B100MBT13RK Control Power Transformer 100VA

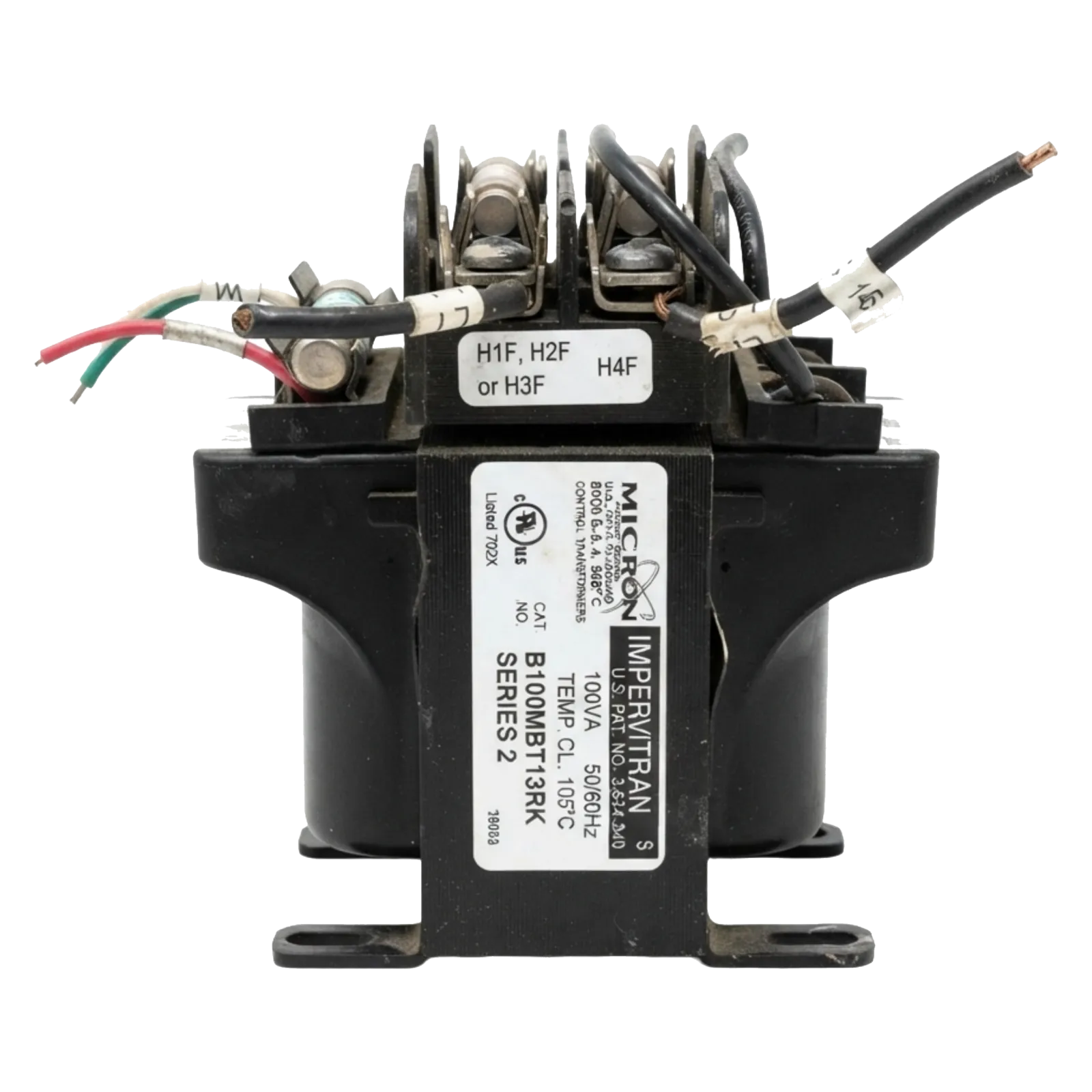

Industrial control circuit applications can require a dedicated control power transformer to provide the appropriate secondary voltage for control components. The Micron B100MBT13RK is an ImperviTRAN series 100 VA control transformer with a 208/230/460 VAC primary and 115 VAC secondary. Published distributor documentation identifies the unit as a single-phase, encapsulated control transformer operating at 50/60 Hz with a 105?C temperature rating.

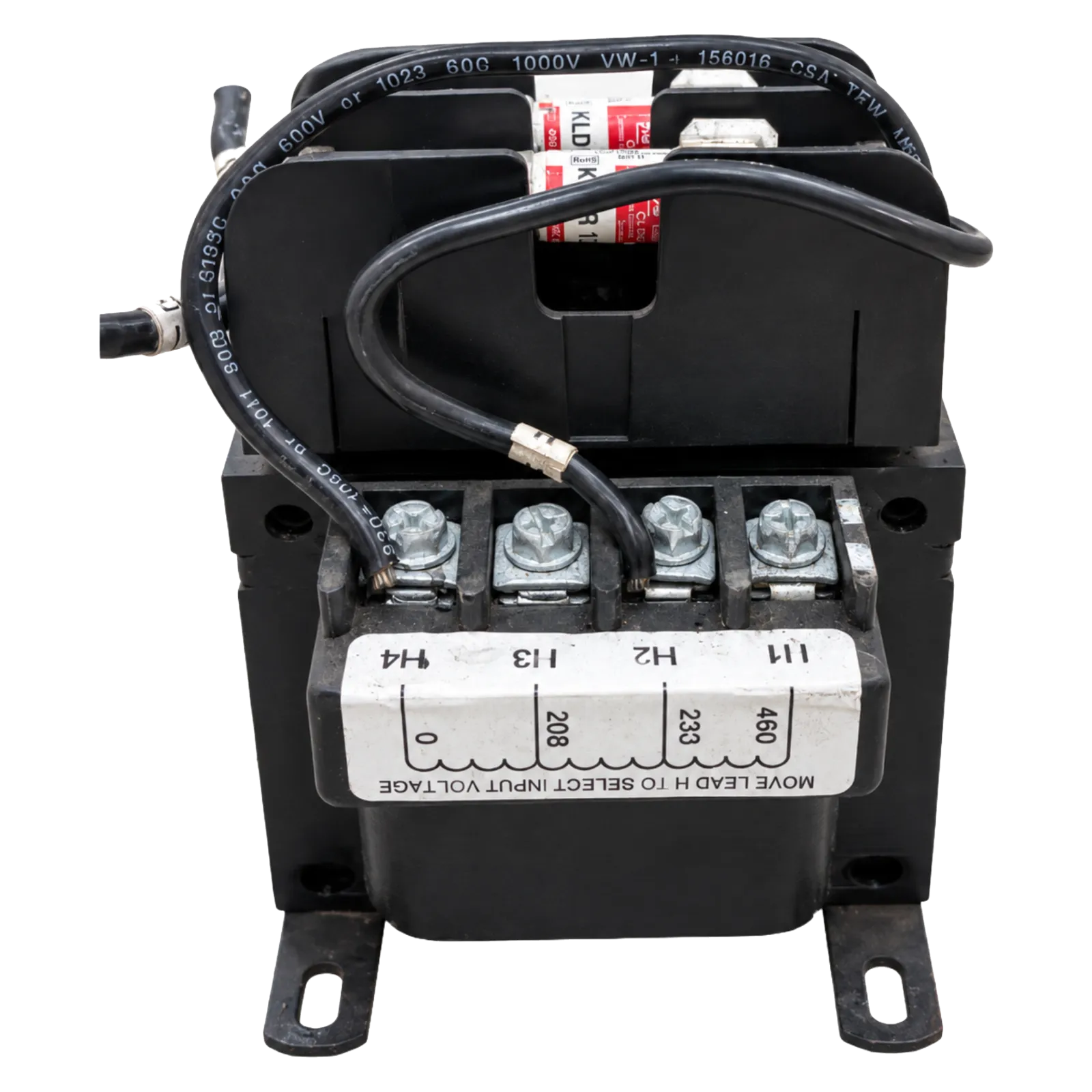

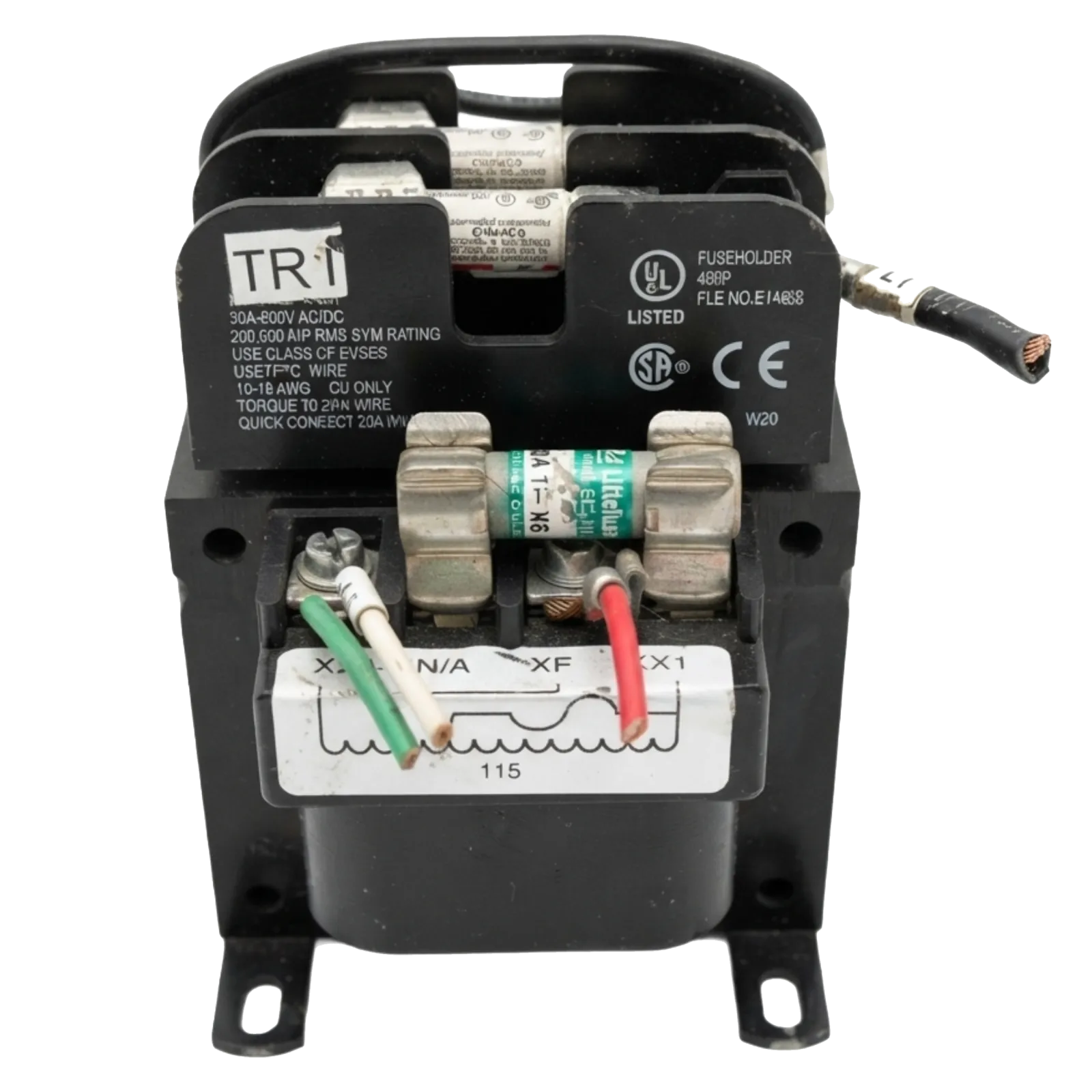

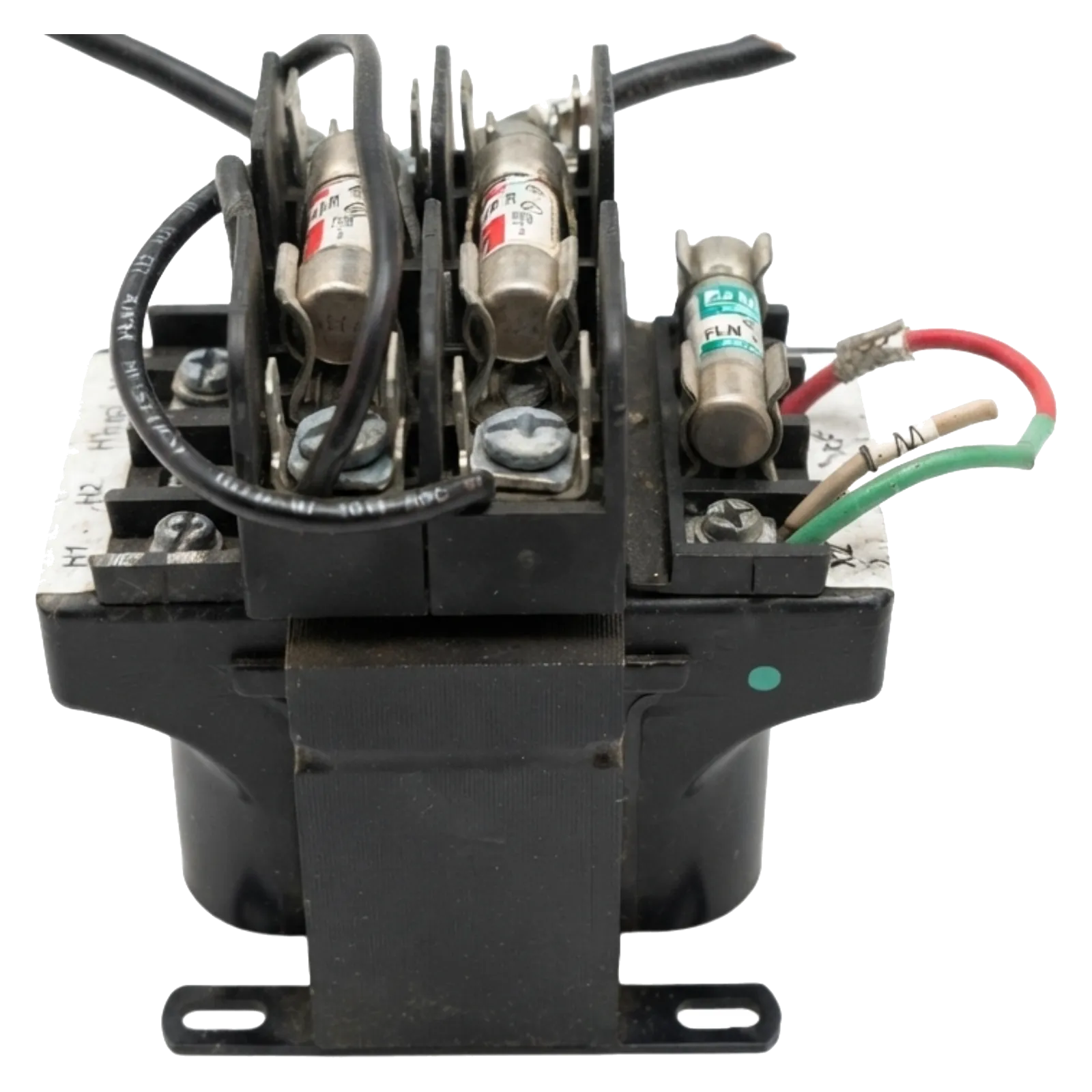

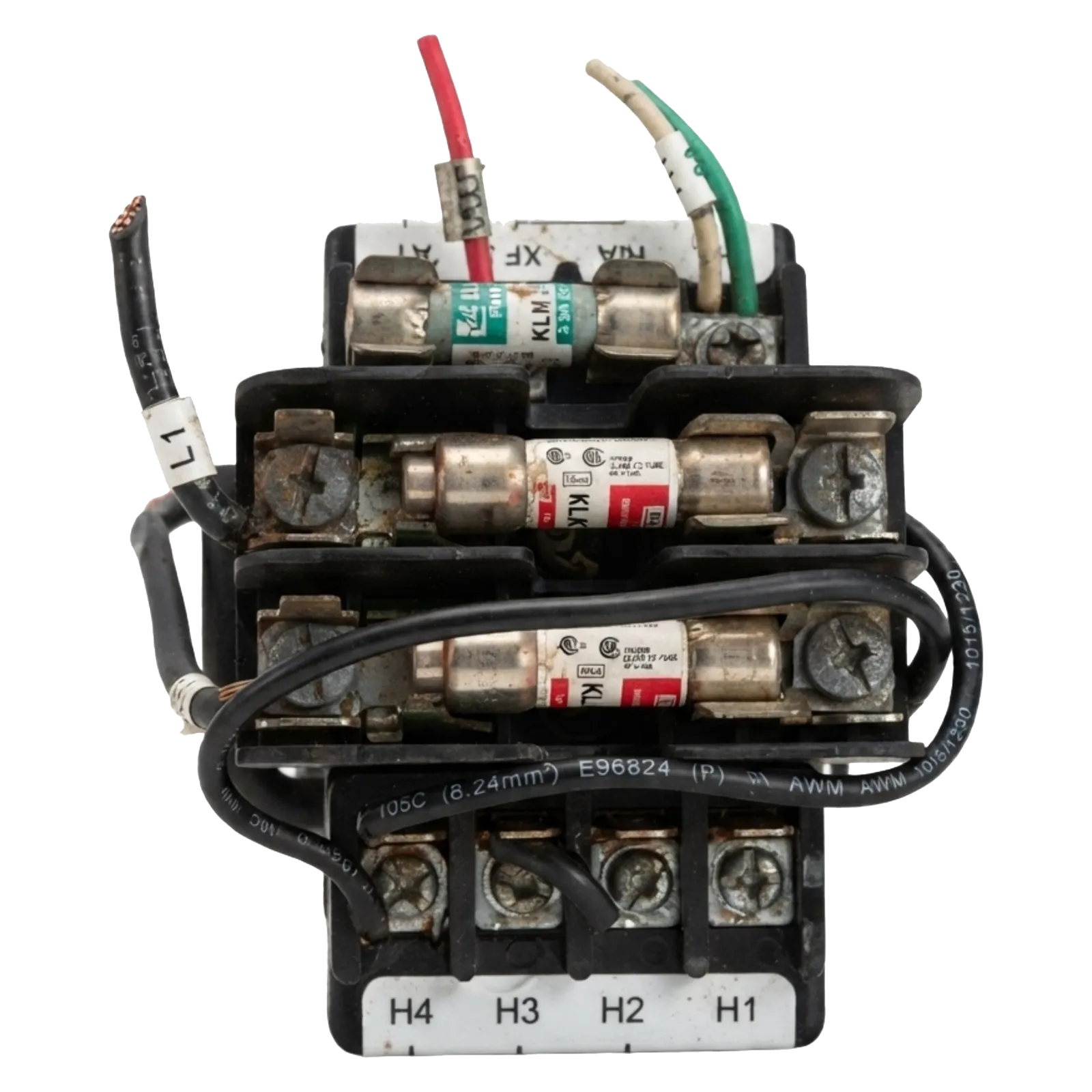

The B100MBT13RK uses epoxy-encapsulated coils and molded-in terminals and terminal barriers. Its construction is intended for industrial control circuit environments where protection of windings and electrical connections is important. Documentation also identifies 10-32 screw terminals, optional or installed fuse-related provisions depending on the configuration, and a steel housing.

Key Features

• 100 VA control transformer capacity.
• 208/230/460 VAC primary voltage.
• 115 VAC secondary voltage.
• Single-phase configuration.
• 50/60 Hz frequency rating.
• Epoxy-encapsulated coils.
• Molded-in terminals and terminal barriers.
• 105?C temperature rating.
• Screw-terminal connections.

Technical Specifications

• Manufacturer: Micron
• Series: ImperviTRAN
• Model: B100MBT13RK
• Transformer type: Control transformer
• Power rating: 100 VA
• Primary voltage: 208/230/460 VAC
• Secondary voltage: 115 VAC
• Phase: 1 phase
• Frequency: 50/60 Hz
• Construction: Encapsulated
• Temperature rating: 105?C
• Connection: Screw terminals
• Housing material: Steel
• Standards listed by distributors: UL and CSA/cUL.

Common Applications

The Micron B100MBT13RK is applicable to industrial control circuit applications and equipment where a 100 VA control transformer with a 208/230/460 VAC primary and 115 VAC secondary is required. Its specifications also make it relevant to electrical control panels, industrial machinery control systems, and other control-power applications requiring the stated voltage configuration.

Includes

Micron B100MBT13RK Control Power Transformer
