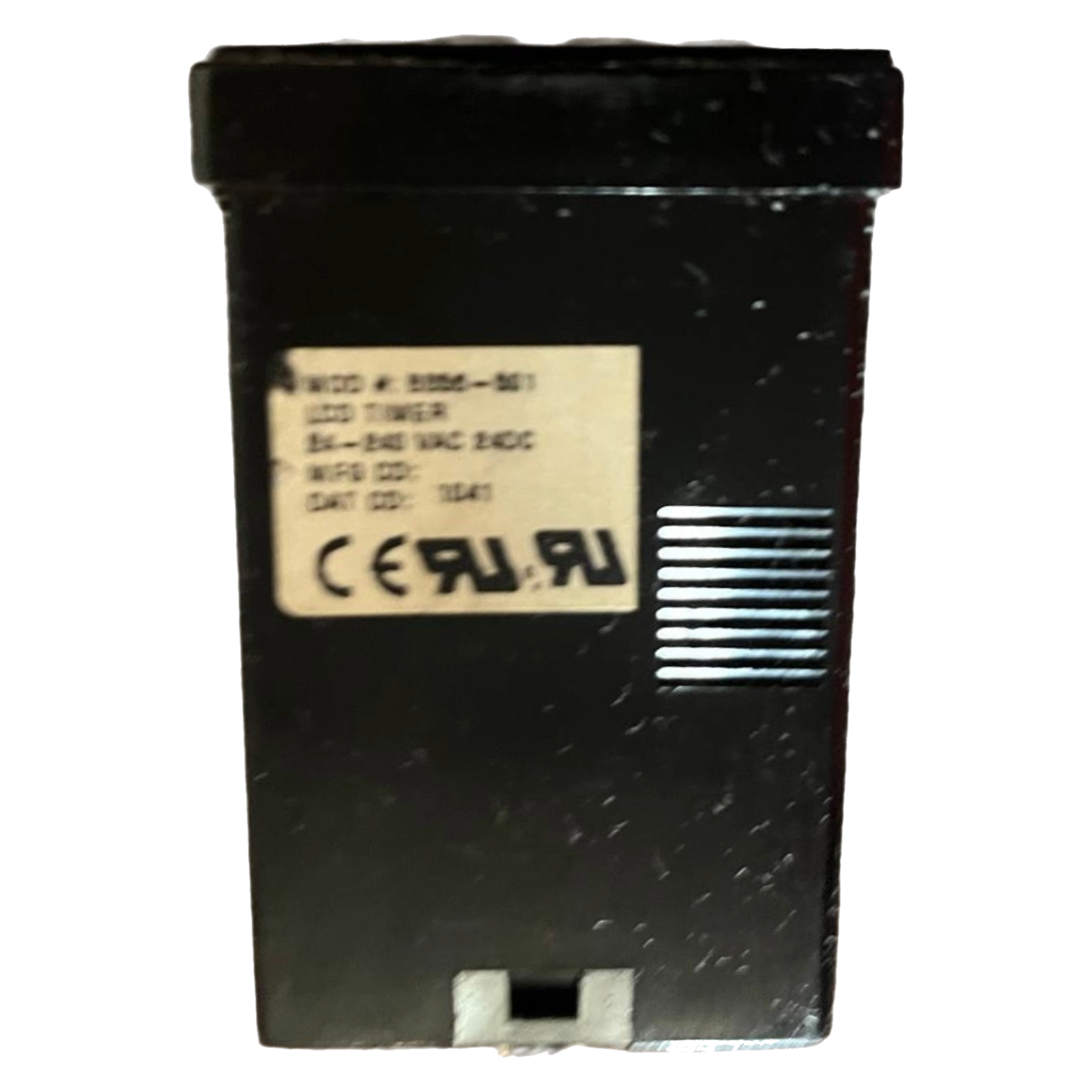

Eagle Signal B856-501 Digital Timer Relay

Industrial timing and control applications can benefit from the Eagle Signal B856-501 Digital Timer Relay, a multifunction electronic timer built around a 1/16 DIN panel-mount configuration. The B856-501 provides programmable timing functions for control systems that require repeatable time-based switching, including on-delay, off-delay, interval, delay/interval, and repeat-cycle operation.

Its dual-line LCD displays timing information and preset values, while the button-per-digit interface provides direct front-panel programming. The unit uses an 8-pin socket connection and accepts 24?240 VAC or 24 VDC power, making it applicable to a broad range of industrial control environments.

Key Features

• Multifunction digital timer relay
• 1/16 DIN compact panel-mount format

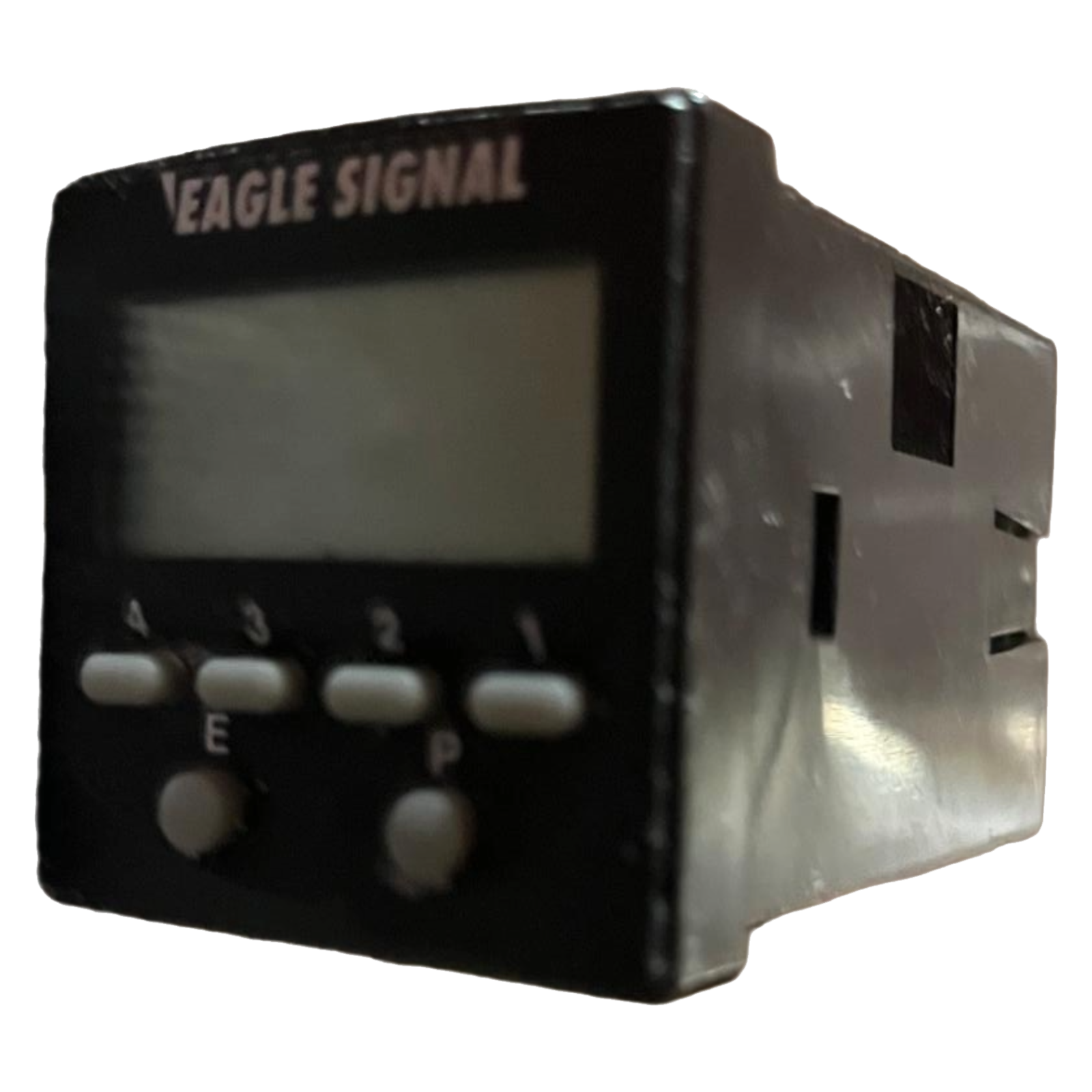

• Dual-line LCD display
• On-delay, off-delay, interval, delay/interval, and repeat-cycle modes
• Front-panel button-per-digit programming
• SPDT timed relay output, 5 A
• NPN or dry-contact start and reset inputs
• 24?240 VAC or 24 VDC power supply
• IEC IP65 rated front panel
• IEC Level 4 noise immunity

Technical Specifications

• Manufacturer: Eagle Signal
• Model: B856-501
• Product type: Multifunction LCD timer / digital timer relay
• Mounting format: 1/16 DIN

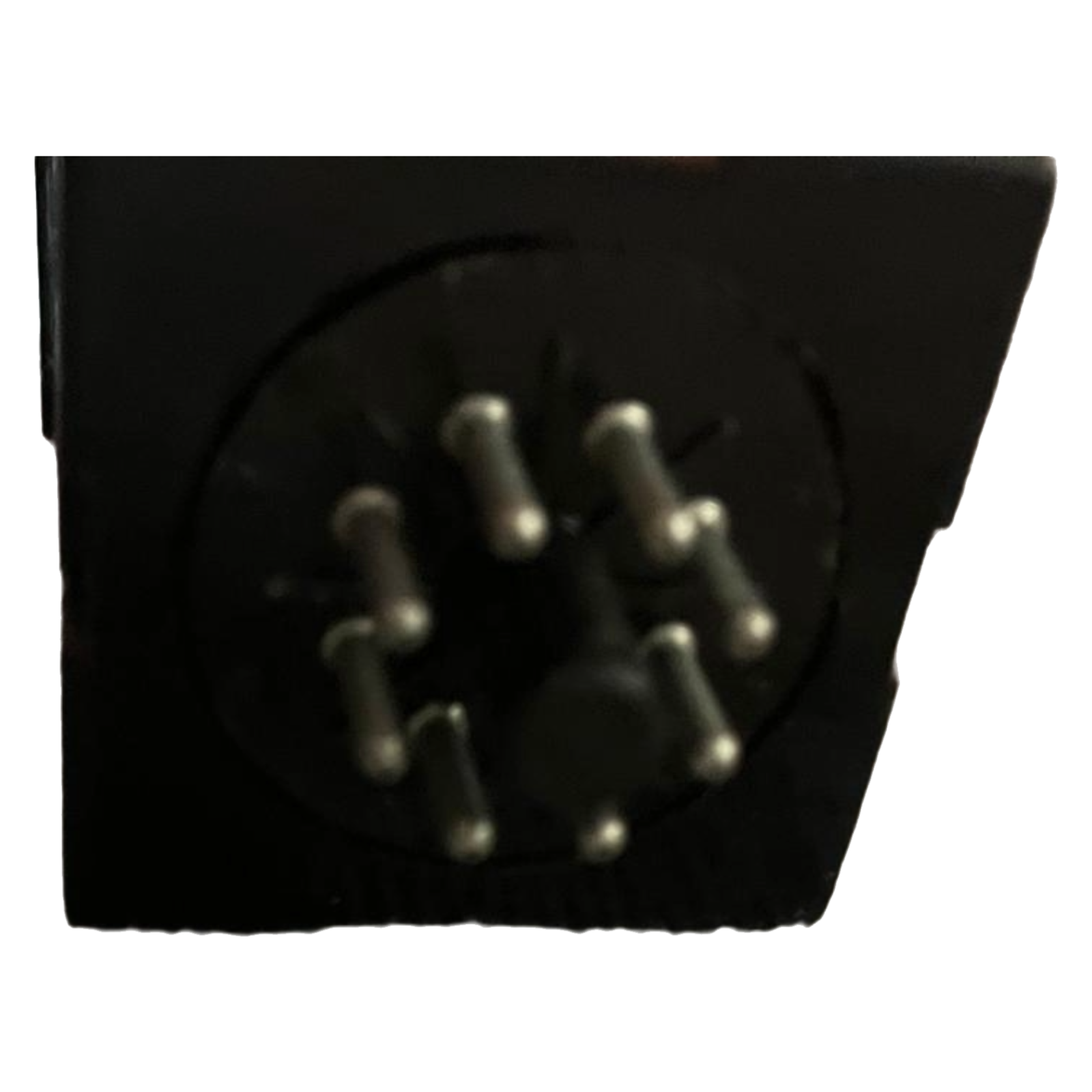

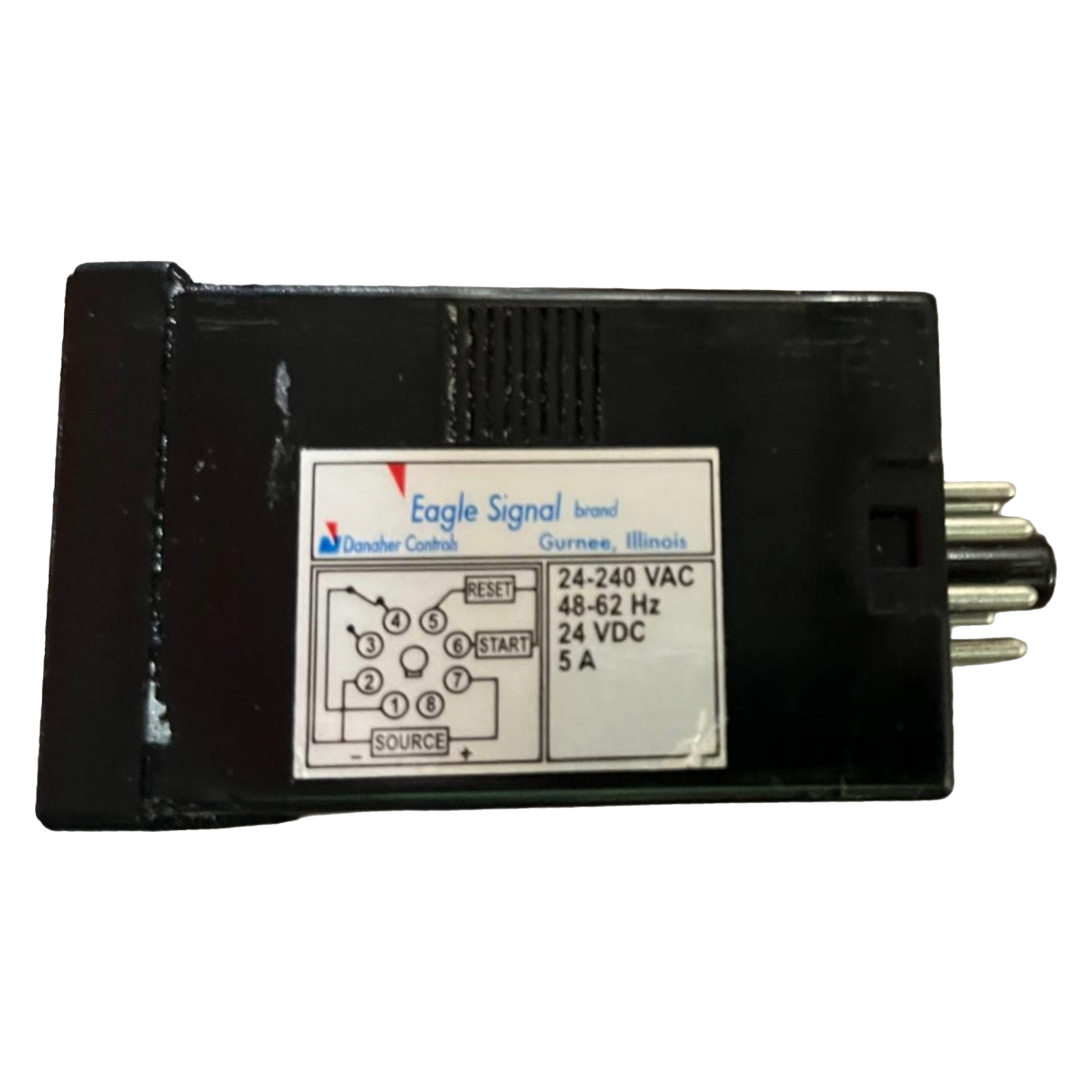

• Connection: 8-pin socket
• Timed output: SPDT, 5 A
• Input type: NPN or dry contact
• Supply: 24?240 VAC or 24 VDC
• Preset range: 0.01 seconds to 9999 hours
• Operating modes: On-delay, off-delay, interval 1, interval 2, delay/interval, repeat cycle
• Front panel rating: IEC IP65
• Operating temperature: 0?C to 55?C

Common Applications

• Industrial machine timing
• Process control
• Electrical control panels
• Automation systems
• Laboratory equipment control
• Production equipment sequencing
• General-purpose time-delay control

The B856-501 is particularly relevant when a conventional electromechanical timer needs to be replaced with a programmable digital timing device offering multiple operating modes and a clear LCD interface. Its compact panel format and broad power-supply range make the Eagle Signal timer useful for equipment builders, maintenance departments, automation applications, and replacement-part requirements.

Includes

• Eagle Signal B856-501 Digital Timer Relay

Additional Benefits

• Local pickup available in Houston, Texas.
• Free shipping on select products within the USA.
• International shipping via FedEx available upon request.

Contact us today to request a customized quote and help ensure your laboratory or industrial workflow operates efficiently using the Eagle Signal B856-501 Digital Timer Relay.
