ASTM D1640 Organic Coatings Tack Testing Device

$99.00

60-Day Warranty

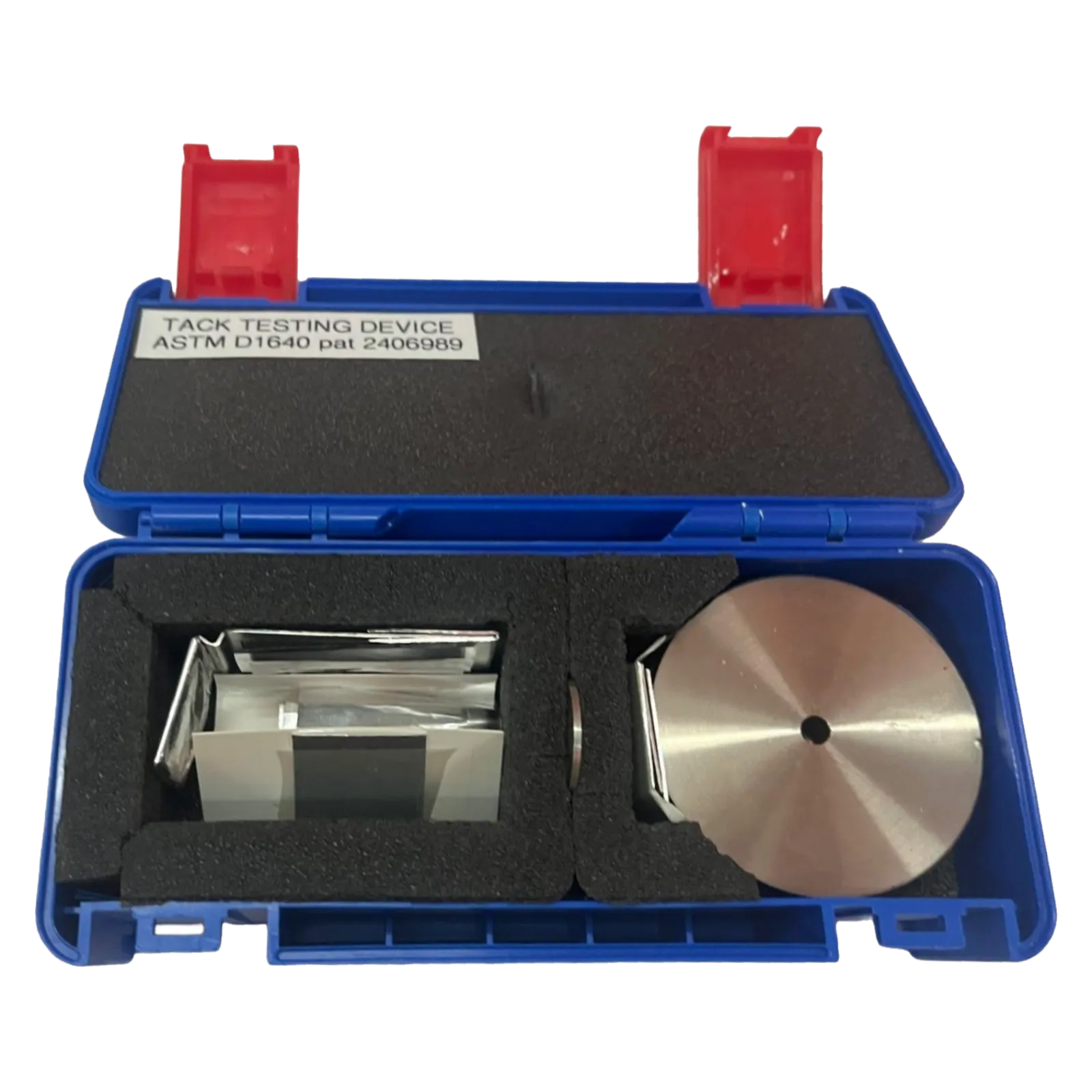

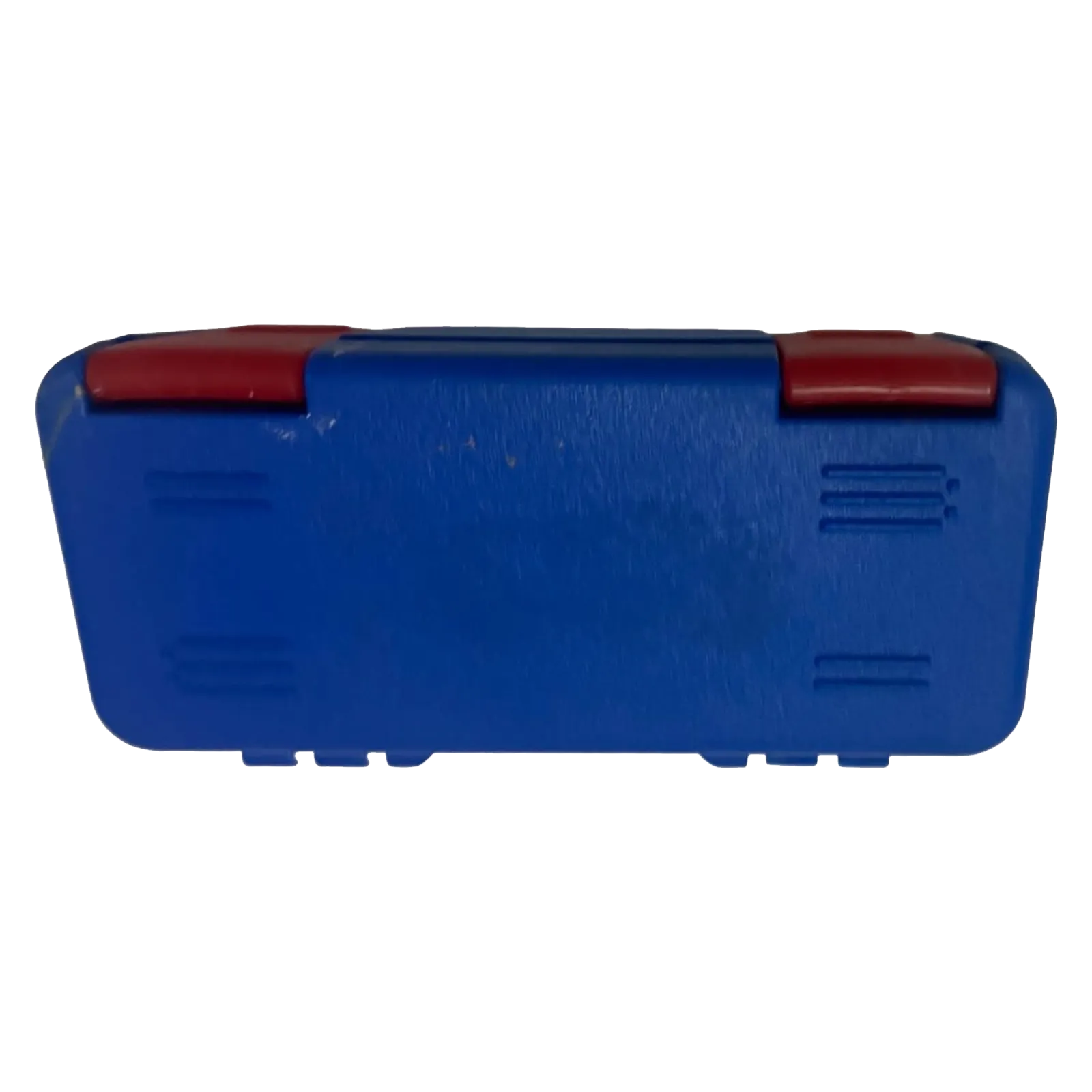

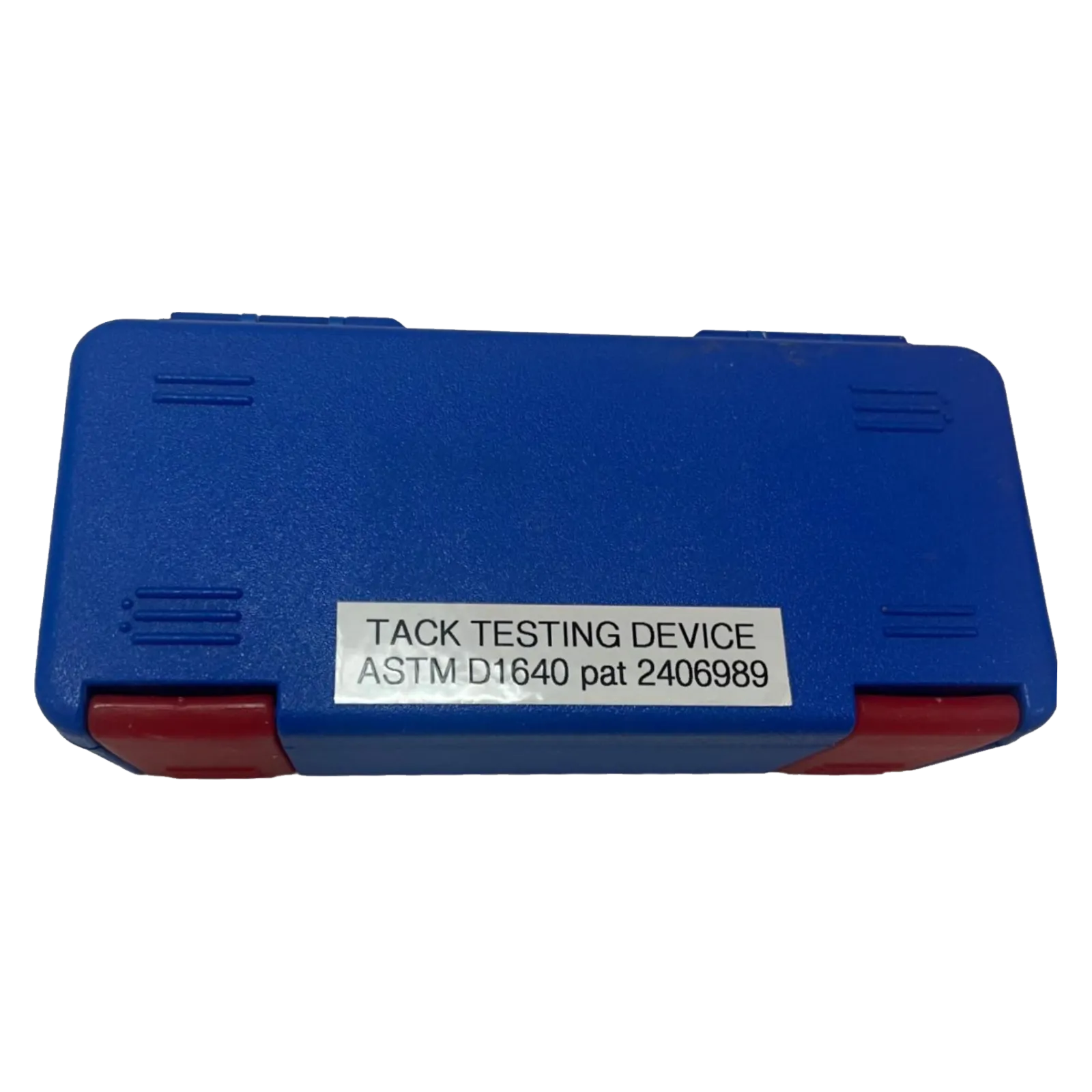

This Gardco ASTM D1640 tack testing device is a used laboratory surplus unit verified for proper working condition, featuring an exceptionally clean, corrosion-free metal weight safely maintained in its original foam-lined storage case.

Product Information

Price: $99.00
Availability: In Stock
Brand: Gardco
SKU: 771
Part Number: —
Operational Status: Tested
Location: Houston, Texas, USA
Ship Weight: —
Warranty: 60-Day Warranty

Request a Personalized Quote

Coatings laboratories need controlled methods for evaluating drying and curing behavior as films progress from liquid application toward a dry or cured state. The Gardco ASTM D1640 Organic Coatings Tack Testing Device is identified for organic-coating drying and surface-cure evaluation and is relevant to paint testing, coating quality control, and materials laboratory workflows.

Gardco’s Quadracycle Drying Time Recorder documentation states that the instrument meets ASTM D1640/D1640M-14 for drying, curing, or film formation of organic coatings. The manufacturer also identifies ASTM D5895 and ISO 9117-4 among the associated standards.

The published Gardco procedure uses a motor-driven arm and ball assembly with a 12-gram weight. The manufacturer’s documentation specifies operation from 32°F to 120°F (0–50°C) and 5–95% relative humidity without condensation, and notes that the instrument is not recommended for oven use. These details make the device relevant to controlled laboratory evaluation of coating drying and curing behavior rather than general-purpose paint application.

For buyers searching for an ASTM D1640 tack testing device, organic coatings tester, drying-time tester, paint testing instrument, or surface tack testing equipment, the ASTM designation is an important search and identification term. The exact public documentation located describes the Gardco Quadracycle implementation of ASTM D1640; therefore, unsupported specifications for the particular inventory item are not added beyond the documented standard and testing function.

Key Features

  • ASTM D1640/D1640M-14 testing association
  • Organic coating drying and curing evaluation
  • Motor-driven testing mechanism
  • 12-gram load specified in the Gardco procedure
  • Operating range of 32°F to 120°F (0–50°C)
  • 5–95% non-condensing humidity range

Technical Information

  • Application: Organic coatings drying, curing, and film formation
  • Standard: ASTM D1640/D1640M-14
  • Additional standards listed by Gardco: ASTM D5895 and ISO 9117-4
  • Operating temperature: 32–120°F (0–50°C)
  • Operating humidity: 5–95%, non-condensing

Common Applications

Typical applications include coating development, paint and surface-finish testing, laboratory quality control, materials research, and evaluation of drying or curing behavior in organic coatings. Gardco specifically identifies drying, curing, and film-formation testing as the instrument’s purpose.

Includes

ASTM D1640 Organic Coatings Tack Testing Device

Additional Benefits

  • Local pickup available in Houston, Texas.
  • Free shipping on select products within the USA.
  • International shipping via FedEx available upon request.

Contact us today to request a customized quote and help ensure your laboratory or industrial workflow operates efficiently using the ASTM D1640 Organic Coatings Tack Testing Device.

Weight 2 lbs
Dimensions 8 × 6 × 4 in
