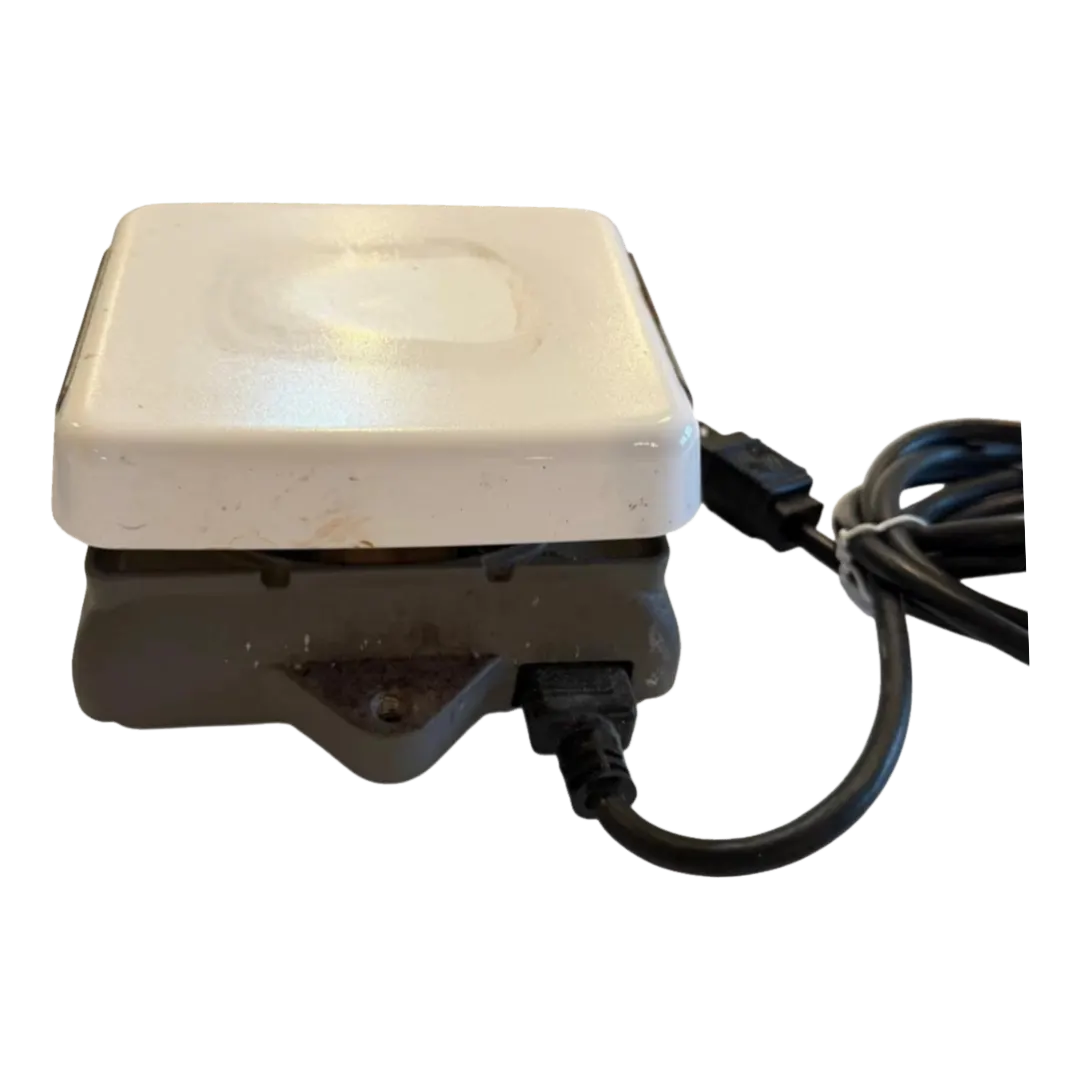

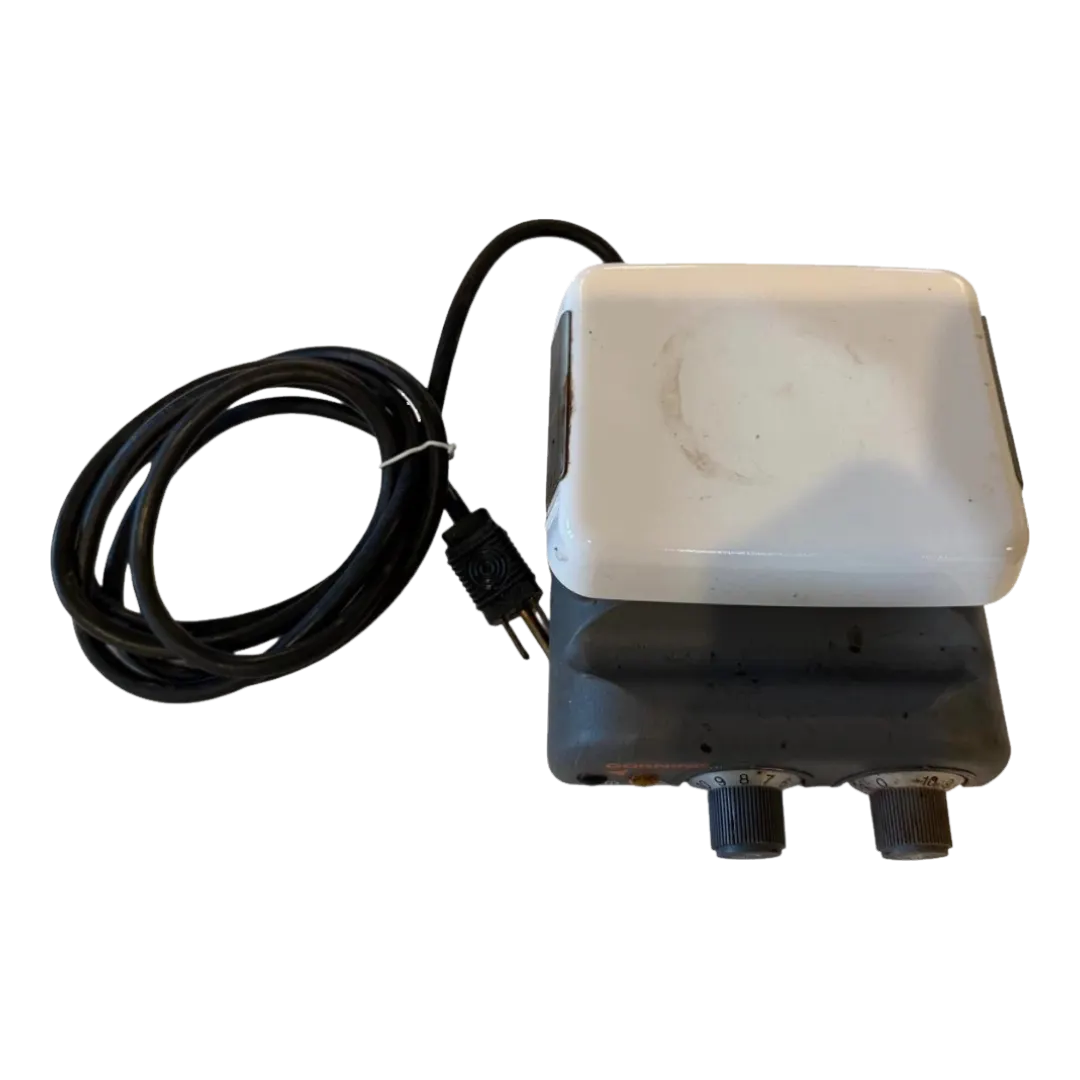

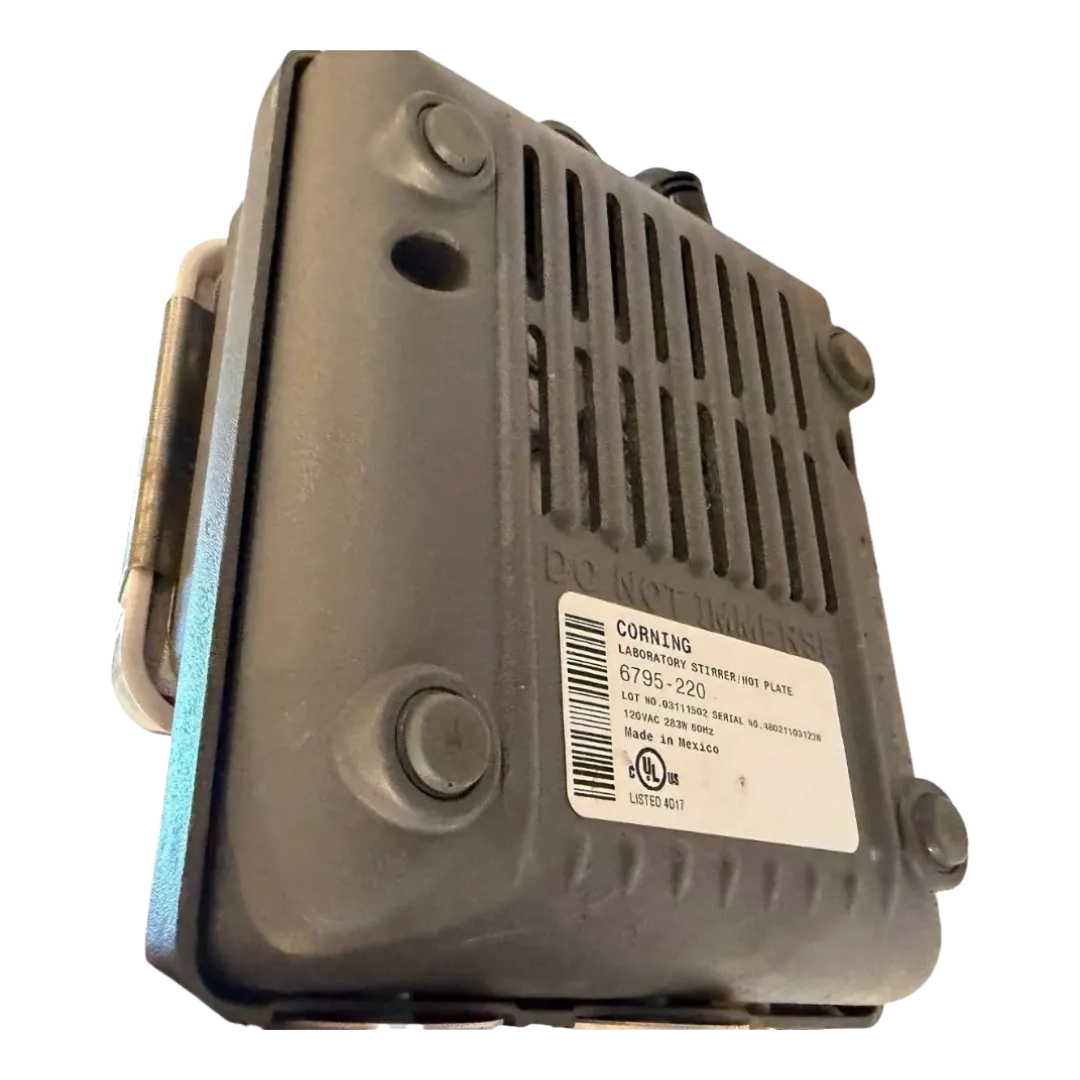

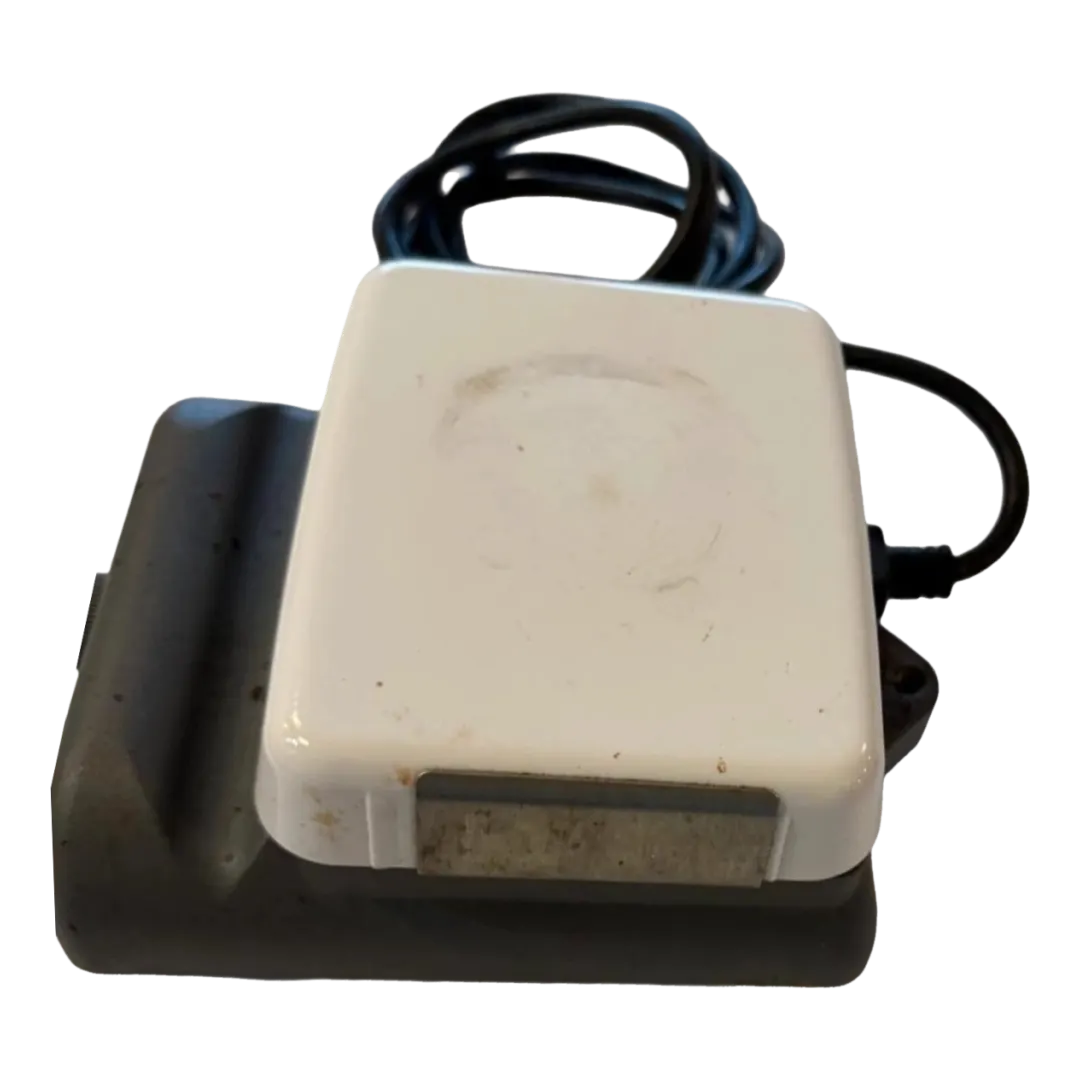

Benchtop sample-preparation workflows often require simultaneous heating and magnetic mixing in a compact laboratory instrument. The Corning PC-220 Magnetic Hotplate Stirrer, Model 6795-220, combines a glass-ceramic heating surface with closed-loop magnetic stirring for controlled laboratory heating and mixing applications. Corning identifies the 6795-220 as a 4 x 5 inch top PC-220 Hot Plate/Stirrer configured for 120V/60Hz operation with a US plug.
The unit uses Corning’s Pyroceram glass-ceramic top and provides one stirring position. Current Corning specifications list a stirring range of 60–1100 rpm and a temperature range of 25–480°C (77–896°F). The 120V/60Hz version is rated at 2.4 A and 283 W. A hot-top indicator warns when the surface remains above 140°F, including when the unit is turned off, and a built-in holder accommodates an optional 4-inch stainless-steel support rod.
Corning also specifies that the 6795-220 includes one 1 x 3/8 inch stir bar, identified as part number 401435. These characteristics make the PC-220 relevant to general laboratory heating, solution mixing, chemical sample preparation, and QA/QC laboratory workflows where a compact hotplate stirrer is appropriate.
Key Features
- 4 x 5 inch Pyroceram glass-ceramic top
- Closed-loop magnetic stirring
- One stirring position
- Stirring range of 60–1100 rpm
- Temperature range of 25–480°C (77–896°F)
- Hot-top indicator light
- 120V/60Hz, 283 W configuration
Technical Specifications
- Product number: 6795-220
- Top size: 4 x 5 inches
- Power: 120V, 60Hz
- Amperage: 2.4 A
- Stir range: 60–1100 rpm
- Temperature range: 25–480°C
- Included stir bar: 1 x 3/8 inch, part 401435
Common Applications
The PC-220 is suited to benchtop laboratory heating and mixing, chemical sample preparation, research workflows, and quality-control environments where controlled stirring and heating are required.
Includes
Corning PC-220 Magnetic Hotplate Stirrer Model 6795-220
Additional Benefits
- Local pickup available in Houston, Texas.
- Free shipping on select products within the USA.
- International shipping via FedEx available upon request.
Contact us today to request a customized quote and help ensure your laboratory or industrial workflow operates efficiently using the Corning PC-220 Magnetic Hotplate Stirrer Model 6795-220.
